Retrofitting wiring harness of CD changer - AZ82.64-P-0001-01IB
Models 215, 220
Installation illustrated on model 220

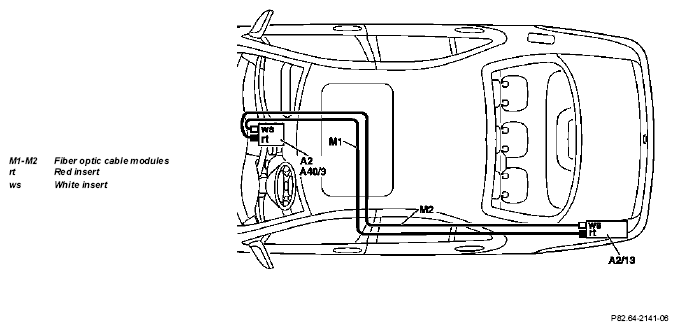

- 1.1 Installation survey for wiring harness (D2B) without additional special equipment such as telephone or TELE AID
Equipment sequence before installation:
- Radio (A2) or COMAND operating, display and control module (A40/3)
- Sound amplifier (A2/13)
- Radio (A2) or COMAND operating, display and control module (A40/3)

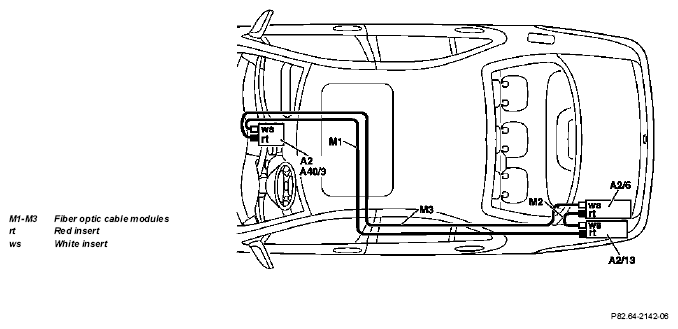

- 1.2 Installation survey for wiring harness (D2B) without additional special equipment such as telephone or TELE AID
- Radio (A2) or COMAND operating, display and control module (A40/3)
- Sound amplifier (A2/13)
- CD changer (A2/6)
- Radio (A2) or COMAND operating, display and control module (A40/3)
After installing new ring equipment, it is necessary to renumber the fiber optic cables (observe information flow).
- 1.3 Installation survey for wiring harness (D2B) without additional special equipment such as telephone or TELE AID

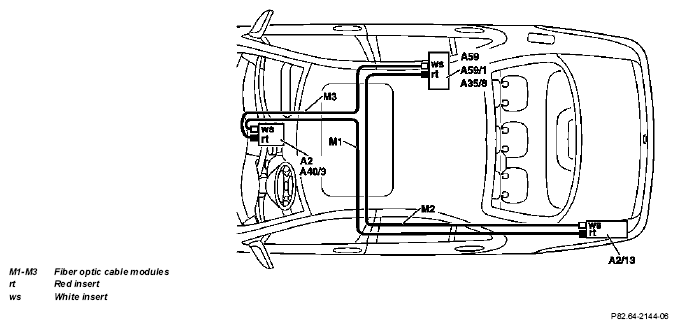

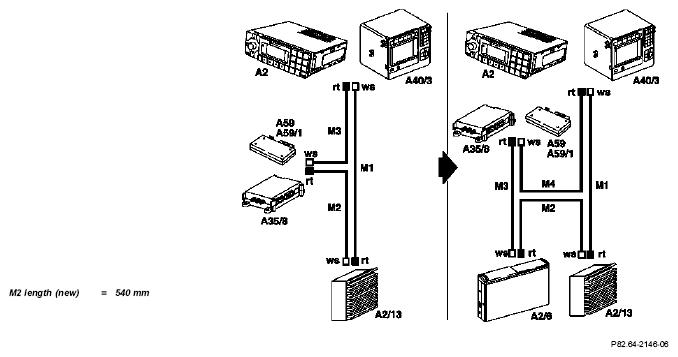

- 2.1 Installation survey for wiring harness (D2B) with additional special equipment such as telephone or TELE AID
- Radio (A2) or COMAND operating, display and control module (A40/3)
- Sound amplifier (A2/13)
- D2B interface for permanently installed telephone (A59) (only with code 316)
or
D2B interface for cellular telephone (A59/1) (only with code 317)
or
TELE AID control module (A35/8) (code 347)
- Voice control system control module (code 813) and optional cellular telephone interface not listed; is not affected by retrofitting.
- Radio (A2) or COMAND operating, display and control module (A40/3)

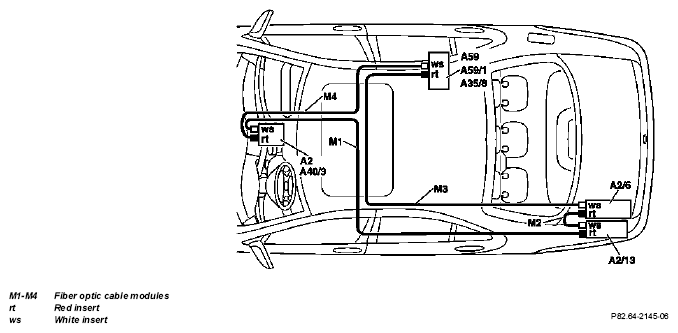

- 2.2 Installation survey for wiring harness (D2B) with additional special equipment such as telephone or TELE AID
- Radio (A2) or COMAND operating, display and control module (A40/3)
- Sound amplifier (A2/13)
- CD changer (A2/6)
- D2B interface for permanently installed telephone (A59) (only with code 316)
or
D2B interface for cellular telephone (A59/1) (only with code 317)
or
TELE AID control module (A35/8) (code 347)
- Radio (A2) or COMAND operating, display and control module (A40/3)
- 2.3 Installation survey for wiring harness (D2B) with additional special equipment such as telephone or TELE AID
The supplementary work for the D2B ring is identical for cases 1 and 2.
- Disconnect sound amplifier connector housing (A2/13).
- Unlock connector housing and remove white insert (ws) from sound amplifier connector housing (A2/13).

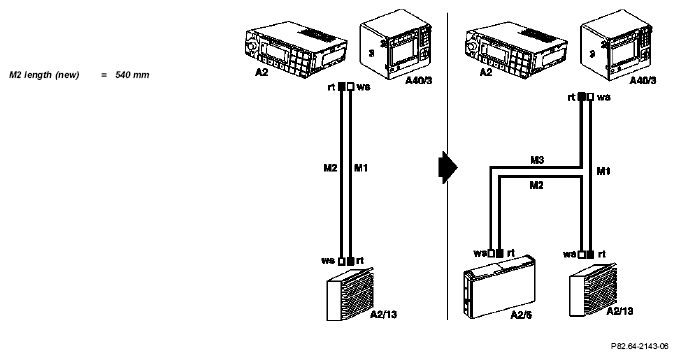

- Insert new M2 fiber optic cable module (new) with white insert (ws) into sound amplifier connector housing (A2/13), lock housing and reconnect.
Observe special routing guidelines for fiber optic cables.
- Unlock new connector housing for CD changer (A2/6) and insert red insert (rd) from new M2 fiber optic cable module (new) into CD changer (A2/6) connector housing. Insert white insert (ws) from M3 fiber optic cable module into CD changer (A2/6) connector housing and lock connector housing. Connect connector housing to CD changer (A2/6).
- Route fiber optic cable along existing lines while observing special routing guidelines and fasten with adhesive felt.

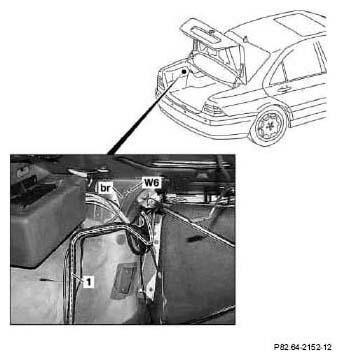

- Route wiring harness (power supply) CD changer (1) from trunk to wire passage in rear wall along existing wiring harnesses and continue routing to left rear wiring duct. Connect brown lead (br) from power supply wiring harness to ground in trunk, left wheelhouse (W6).

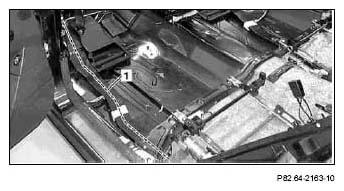

- Route power supply wiring harness (1) in left wiring duct toward front and insert into existing wiring duct in direction of driver's footwell along inner rocker panel.

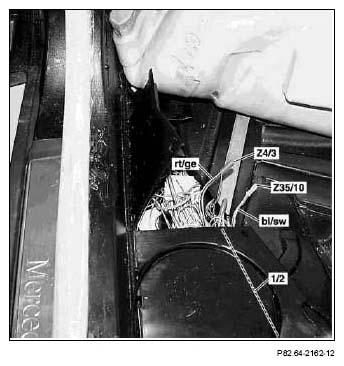

- Solder blue/black lead (bl/sw) from wiring harness power supply (1/2) to blue/black lead (bl/sw) on end sleeve (Z35/10) for wakeup signal using solder connector.
Solder red/yellow lead (rt/ge) from wiring harness power supply (1/2) to red/yellow lead (rt/ge) on end sleeve (Z4/3) of circuit 30 using solder connector.
