Retrofitting CD changer wiring harness - AZ82.64-P-0001-01IA

Installation illustrated on model 220

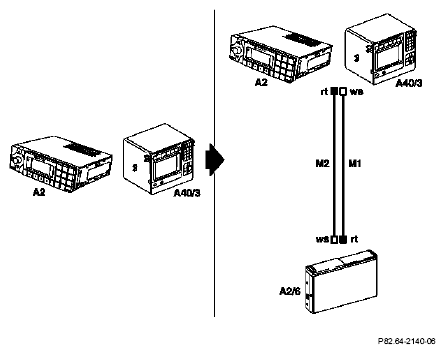

Equipment sequence following installation (must be maintained):

The information flows corresponding to the specified equipment sequence.

Fig 1: Identifying CD Changer Wiring Harness

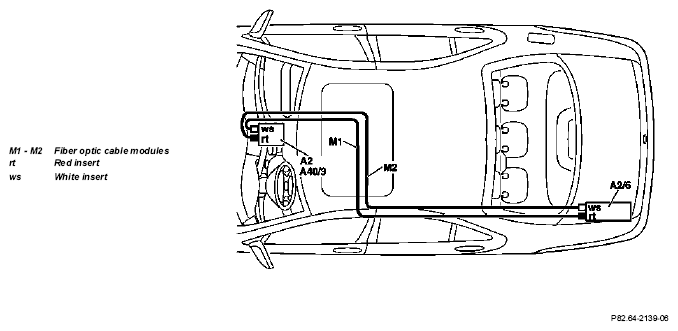

Insert connectors for D2B wiring harness into connections designated for the ring equipment radio (A2) or COMAND operating, display and control module (A40/3) and CD changer (A2/6).
Route fiber optic cable along existing lines while observing special routing guidelines and fasten with adhesive felt.

Fig 2: Identifying Control Module And CD Changer

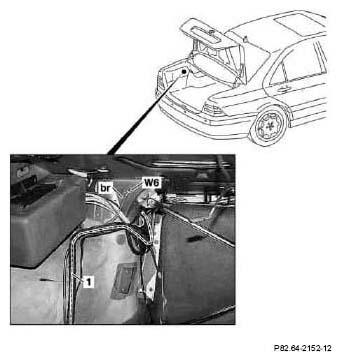

Route CD changer (1) wiring harnesses (power supply and fiber optic cable) from trunk to wire passage in rear wall along existing wiring harnesses and continue to left rear wiring duct. Connect brown lead (br) from power supply wiring harness to ground in trunk, left wheelhouse (W6).

Fig 3: Identifying CD Changer Wiring Harnesses

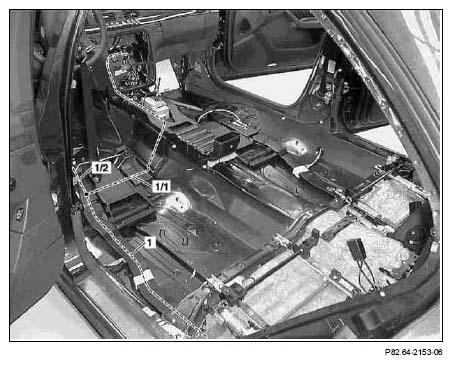

Route wiring harnesses (1) to front in left wiring duct. Route fiber optic cable (1/1) wiring harness to selector lever in existing wiring duct and from there route in wiring duct to center console. Insert power supply (1/2) wiring harness from inner rocker panel to driver's footwell in existing wiring duct.

Fig 4: Identifying Route Wiring Harnesses To Front In Left Wiring Duct

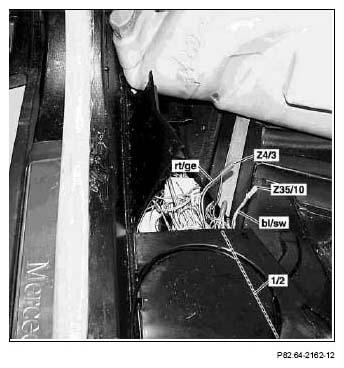

Solder blue/black lead (bl/sw) from wiring harness power supply (1/2) to blue/black lead (bl/sw) on end sleeve (Z35/10) for wakeup signal using solder connector.
Solder red/yellow lead (rt/ge) from wiring harness power supply (1/2) to red/yellow lead (rt/ge) on end sleeve (Z4/3) of circuit 30 using solder connector.

Fig 5: Identifying Wiring Harness Power Supply And End Sleeve
