Retrofitting CD changer in trunk - AZ82.64-P-0001-05IA

Models 215, 220

Installation illustrated on model 220

1. Screw CD player with changer (A2/6) to equipment carrier (2) with 4 short screws (1).

   The maximum length of the mounting screws (1) is indicated on the CD player housing (A2/6).

   Fig 1: Identifying Mounting Screws, CD Player Housing And Equipment Carrier


2. Connect D2B fiber optic cable (3) and power supply (4) to CD player with changer (A2/6).
   Fig 2: Identifying D2B Fiber Optic Cable And Power Supply


3. Mount cable harness to equipment carrier (2) with cable straps (see arrows).
   Fig 3: Locating Cable Harness To Equipment Carrier


4. Install equipment carrier (2) and CD player with changer (A2/6) in left trunk recess with nuts (5) and bolts (6) according to figure.

   Do not kink or stretch fiber optic cable!

   Routing radiuses must be greater than 25 mm!

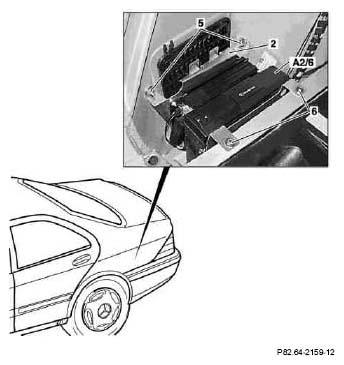

   Fig 4: Identifying Equipment Carrier, CD Player With Changer, Nuts And Bolts
