Retrofit digital TV tuner - AZ82.60-P-0007MB: Notes

MODEL 220.0## /1## 1# as of 352882 with CODE (860) TV tuner

Vehicles with MOST fiber optical cable

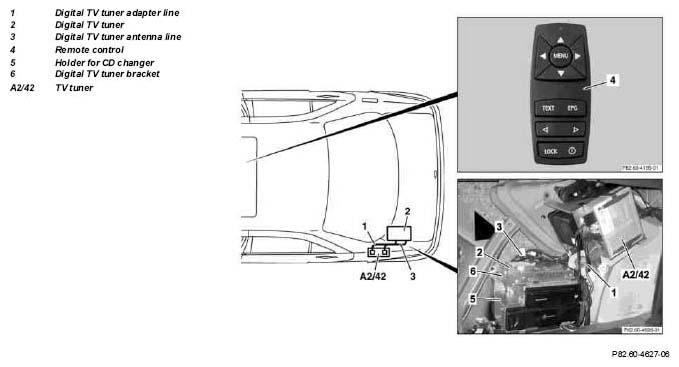

Fig 1: Identifying Digital TV Tuner Components Location - Model 220.0## /1## 1# As Of 352882

	Remove
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Connect no load current retention unit		*WH58.30-Z-1012-09A
			AR54.10-P-1030-07I
2	Disconnect battery ground cable
			AR54.10-P-0003I
	Notes on battery	All models	AH54.10-P-0001-01A
	Notes on AGM battery	Model 220.025/125 Model 220.028 with CODE (450) taxi version Model 220.070/075/175/178/875/878 as of 1.1.01	AH54.10-P-0002-01A
3	Remove coverings in trunk	Only left side lining.
			AR68.30-P-4600M
	Install
4	Retrofit digital TV tuner control unit		AZ82.60-P-0007-01MB
5	Retrofit TV tuner wiring harness	Risk of breakage!  Do not kink fiber optical cable, route over sharp edges or bend in radii smaller than 25 mm. Tensile forces on inserts must not exceed 65 N. Do not crush fiber optic cable, and do not compress with clamps or tie straps.	AN82.60-P-0001-03MB
6	Carry out start-up and function test		AZ82.61-P-0001-04MM
7	Install remaining parts onto vehicle
