Check DVD player for proper function - AZ82.60-P-0005-03M

MODEL 220 up to 31.8.02

1. Insert batteries into remote control (2) (included in delivery specification).
2. Switch on DVD player (A40/4) using the remote control (2) (power button bottom left).

   Check, whether switch set to "DVD" (see magnified section).

3. Insert a CD into the DVD player (A40/4).

   See owner's manual.

   Fig 1: Identifying Remote Control

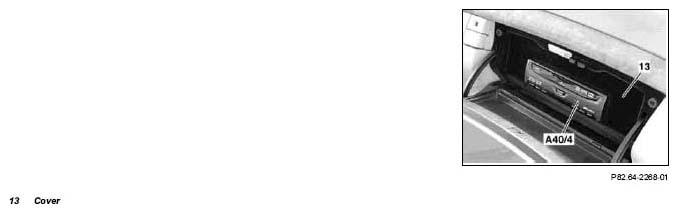

   Fig 2: Identifying DVD Player And Cover


4. Set COMAND operating, display and control module (A40/3) to "TV" function and setting "AV1".
5. Start DVD player (A40/4) using the remote control (button up in center position).

Further instruction notes are given in the operating instructions.

Fig 3: Identifying Control Module
