Lower rear axle - AR35.10-P-0020-01GH

Align vehicle between the columns of the and position the four support plates below the lifting platform support points specified by the vehicle manufacturer.

Exhaust system

Number	Designation		Engines 112,113 in model 163
BA49.10-P-1006-01A	Screw securing rear muffler to center muffler	Nm	55

Rear axle carrier

Number	Designation		Model 163
BA35.10-P-1001-01C	Self-locking bolt, rear axle carrier at front and rear of frame floor	Nm	200
BA35.10-P-1006-01C	Bolt/nut, mounting of check strap on rear axle carrier and frame floor assembly	Nm	20

Workshop equipment

WE58.40-Z-1019-11A

Removal fixture for axles

1 Raise vehicle with lifting platform.

Model 163.174 only

2.1 Remove rear muffler (1)

Model 163.174 only

3.1 Remove shield of rear muffler (2).
4 Detach rod of level control (4) at top of mounting (3).
5 Remove lower bolts of mounting of check strap on rear axle carrier and frame floor assembly.

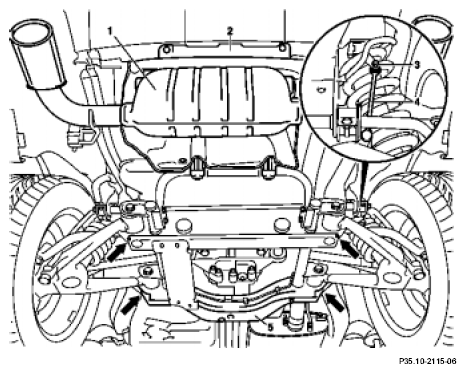

Fig 1: Identifying Rear Muffler, Level Control And Mounting Bolts

6 Support rear axle by axle removal device and pit lift or assembly lift.
Ensure that the guide pin is inserted in the rear axle carrier so that the rear axle cannot slip.
7 Remove bolts of rear axle carrier (arrows) on frame floor assembly.
8 Lower rear axle.
Lower rear axle carefully. Ensure that no cables and lines are pinched.

Suspension struts limit the travel for lowering the rear axle.
9 Install in the reverse order.

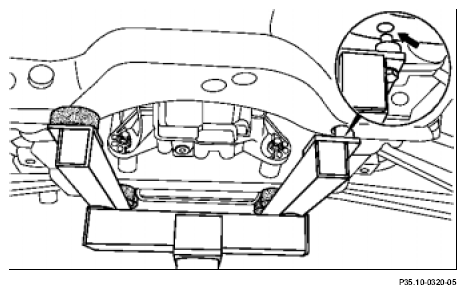

Fig 2: Identifying Removal Fixture For Axles
