Check front axle gear oil level and top up if necessary - AR33.30-P-0525-02GH
Modification notes
| 8.1.07 | Filling capacity, Specifications for Operating Fluids | Model 163 | *BF33.30-P-1001-03B |
| Number | Designation | Model 163 | |
|---|---|---|---|
| BA33.30-P-1002-03B | Oil filler screw, front axle gear | Nm | 50 |

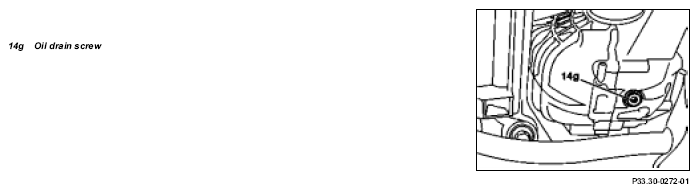

| BA33.30-P-1003-03B | Oil drain screw, front axle gear | Nm | 50 |
| Number | Designation | Model 163 | ||
|---|---|---|---|---|
| BF33.30-P-1001-03B | Filling capacity | Front axle gear | Liters | 1.2 |
| Specifications for Operating Fluids | Sheet | BB00.40-P-0235-07B | ||
- Clean area around oil filler screw (14f).
- Remove oil filler screw (14f).
The front axle gear is correctly filled when the oil reaches the lower edge of the filler opening. Top up if necessary. If the oil level check is carried out when the front axle gear is warm , do not drain off oil discharged as a result of thermal expansion.
- Replace seal ring for oil filler screw.
- Screw in oil filler screw and tighten.
