| 1 |
|

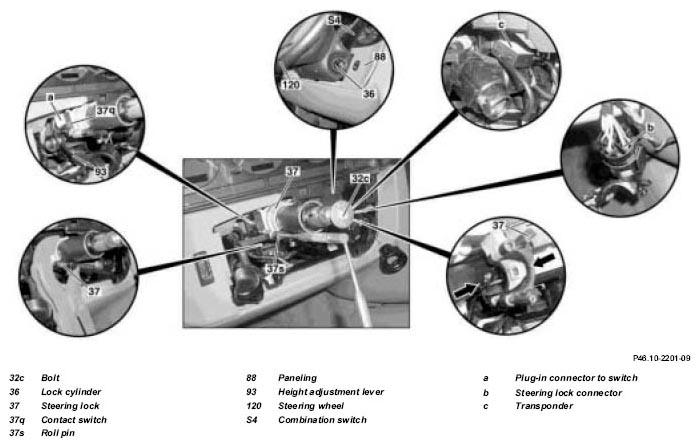

Remove lock cylinder (36) |
AR46.10-P-0800GH |
| 2 |
Remove steering wheel (120) |
|
AR46.10-P-0100GH |
| 3 |
Remove clock spring contact |
|
AR46.10-P-0200GH |
| 4 |
Remove combination switch (S4) |
|
AR54.25-P-2800GH |
| 5 |
Detach trim panel (88) |
|
|
| 6 |
Disconnect connector for contact switch (a) from contact switch (37q) for height adjustment lever (93) |
|
|
| 7.1 |
Remove shift lock from steering lock; to do this, compress retaining clamps and move shiftlock backwards out of the retaining lugs |
On models fitted with automatic transmission. |
|
| 8 |
Pull transponder (c) forwards off steering lock |
|
|
| 9 |
Attach bolt (32c) to steering shaft |
Otherwise the steering shaft splines may be damaged when hammering out the roll pin. |
|
| 10 |
Fold down height adjustment lever (93) |
|
|
| 11 |
Hammer roll pin out of steering lock (37) using a suitable drift |
The lower dowel pin support is destroyed in the process. |
|
| 12 |
Disconnect steering wheel lock connector (b) after unlocking the plug |
Installation:
The plug must lock in position. |
|
| 13 |
Remove steering lock (37) |
|
|
| 14 |
Remove contact switch (37q) |
|
|
 |
Install |
|
|
| 15 |
Attach contact switch (37q) to new steering lock |
|
|
| 16 |
Slide on connector of steering lock (b) |
Installation:
The plug must lock in position. |
|
| 17 |
Attach new steering lock to jacket tube, observe installation position (arrows) |
|
|
| 18 |
Drive roll pin (37s) centrally into the steering lock (37) |
Clamp upper and lower part of steering lock together using pliers. |
|
| 19 |
Press contact switch (37q) upwards and attach |
The contact spring must be operated. |
|
 |
*BA46.10-P-1005-03C |
| 20 |
Unscrew bolt (32c) on steering shaft |
|
|
| 21 |
Slide transponder (c) onto steering lock |
|
|
| 22.1 |
Install shiftlock in steering lock |
On models fitted with automatic transmission. |
|
| 23 |
Connect connector for contact switch (a) for height adjustment lever |
|
|
| 24 |
Install trim (88) |
|
|
| 25 |
Install combination switch (S4) |
|
AR54.25-P-2800GH |
| 26 |
Install contact spiral |
|
AR46.10-P-0200GH |
| 27 |
Install steering wheel (120) |
|
AR46.10-P-0100GH |
| 28 |
Install lock cylinder (36) |
|
AR46.10-P-0800GH |
| 29 |
Fold height adjustment lever (93) upwards for locking |
|
|
