Risk of injury
caused by performing testing or repair work on airbag or emergency tensioning retractor units. |
Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply. |
AS91.00-Z-0001-01A |
 |
Notes on self-locking nuts and bolts |
All models |
AH00.00-N-0001-01A |
 |
Notes on performing repair, body work and welding on vehicles with airbags and ETR units |
Model 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 414, 638, 690.6, 901, 902, 903, 904, 905 Type 461 Model 463 to 30.11.00 Model WD1, WD2, WD3, WD6, WD741, XD1, XD2, XD3, XD4, XD5, XD6, XD7, YD1, YD2, YD3, YD4, YD5, YD6, YD7 |
AH91.00-P-0002-01B |
 |
Legal regulations on handling and storing airbags and emergency tensioning retractors |
Model 124, 129, 140, 163, 168, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240, 314, 316, 318, 414, 450.3/4, 452.3/4, 454, 461, 463, 638, 639.601/603/605/701/703/ 705/ 711/ 713/ 811/ 813/ 815, 668, 670, 690.6, 901, 902, 903, 904, 905, 930, 932, 933, 934, 950, 952, 953, 954, 970, 972, 974, 975, 976 Model WD1, WD2, WD3, WD6, WD7, XD1, XD2, XD3, XD4, XD5, XD6, XD7, YD1, YD2, YD3, YD4, YD5, YD6, YD7 |
AH91.00-P-0004-01A |
| 1 |

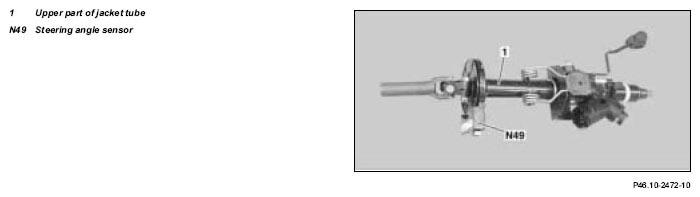

Remove upper part of jacket tube (1) |
Do not remove lower part of jacket tube from steering coupling |
AR46.10-P-0400GH |
Installation:
Before fastening the jacket tube to the instrument panel, plug in steering angle sensor and carry out function check using STAR DIAGNOSIS. |
|
Bolt, steering wheel to steering shaft |
*BA46.10-P-1001-02A |
Lower self-locking nut, jacket tube to body |
*BA46.10-P-1001-03C |
Upper bolt, steering column jacket to body |
*BA46.10-P-1002-03C |
Nut of ground cable to body |
*BA54.10-P-1017-01C |
Screw for airbag to steering wheel |
*BA91.60-P-1001-01A |
| STAR DIAGNOSIS |
*WH58.30-Z-1048-13A |
| 2 |

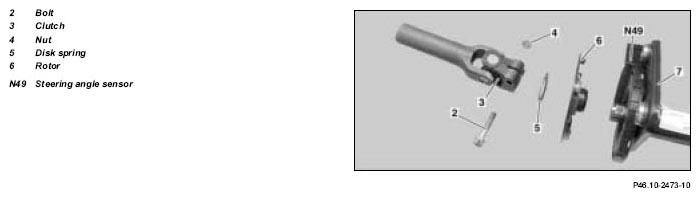

Unscrew bolt (2) and remove coupling (3) from the steering shaft |
Installation:
Replace bolt (2) and nut (4). Pay attention to correct installation position of coupling (3). |
|
Self-locking nut, steering coupling to steering shaft and rack-and-pinion steering |
*BA46.10-P-1001-01D |
| 3 |
Remove disk spring (5). |
Installation:
Ensure that the disk spring is installed correctly: The side of the disk spring which is arched inwards must point towards the rotor. |
|
| 4 |
Remove rotor (6) from steering angle sensor (N49) |
Installation:

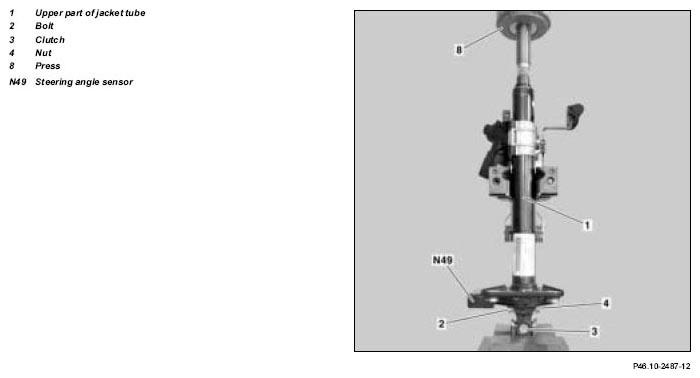

Exchange rotor (6). Press in coupling using press (8) and ensure that there is an even gap over the entire circumference between the rotor and steering angle sensor. |
|
Gap between the rotor and steering angle sensor |
*BE46.00-P-1001-01B |
Pressing-in pressure, coupling - steering shaft |
*BE46.10-P-1001-01E |
| Workshop press |
*WE58.40-Z-1001-12A |
| 5 |
Install in the reverse order |
|
|
| 6 |
Carry out test drive, check function using STAR DIAGNOSIS and check straight-ahead position of the steering wheel |
When driving straight ahead with correct steering wheel position, the steering angle should be ± 7.5° from 0. |
|
| STAR DIAGNOSIS |
*WH58.30-Z-1048-13A |
