Checking tie rod and drag link joints for play and checking rubber boots - AP46.00-P-4653GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

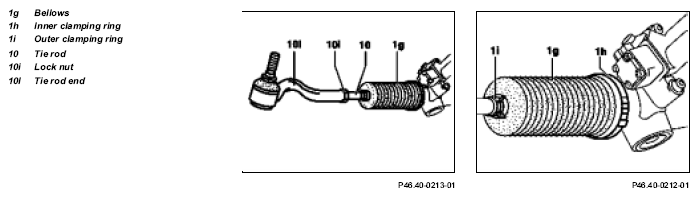

Fig 1: Identifying Tie Rod Components And Drag Link Joints

1	Ignition OFF
	Checking
2	Check bellows (1g) by visual inspection as follows: Jack up vehicle at front axle Stretch bellows by turning the steering to the left and right while checking for damage (cracks, chafe marks and dents)	Never check the bellows (1g)by pushing in or bending the folds as this causes damage to the plastic and leads to leaks in the long term. If necessary: ↓
		Replace bellows	AR46.40-P-0400GH
3	Check tie rod (10) for play	Check tie rod joints by pulling and pushing firmly. If necessary: ↓
		Replace track rods	AR46.40-P-0200GH
4	Check rubber boot of outer joint for leaks and condition	If a rubber boot is leaking, replace tie rod joint. If necessary: ↓
		Replace track rods	AR46.40-P-0200GH
