Removing and installing rear seat belts - AR91.40-P-0681GH

MODELS 163.136 /154 /172 up to 31.8.99

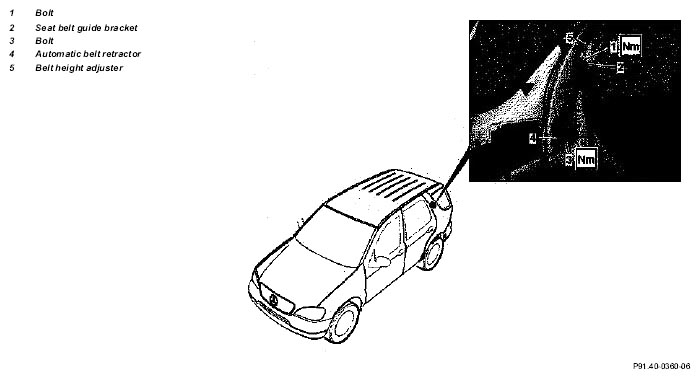

Fig 1: Identifying Seat Belt Guide Bracket And Automatic Belt Retractor

	Removing, installing
	Risk of injury  through expansion of automatic belt retractor spring	Never dismantle automatic belt retractor.	AS91.00-Z-0002-01A
1	Remove paneling on C-pillar		AR68.30-P-4490GH
2	Remove bolt (1) on seat belt guide bracket (2)	If necessary remove belt height adjuster (5).
			*BA91.40-P-1002-01D
3	Remove bolt (3) on automatic belt retractor (4)		*BA91.40-P-1003-01D
4	Remove automatic belt retractor (4)	During installation:  Note catch of automatic belt retractor.
5	Check seat belts for damage
			AP91.40-P-9150GH
6	Install in the reverse order

Seat belts/emergency tensioning retractors

Number	Designation		Model 163 up to 08/99	Model 163 as of 09/99
BA91.40-P-1002-01D	Screw in rear upper belt guide fitting	Nm	30	30
BA91.40-P-1003-01D	Screw, on rear automatic belt retractor	Nm	30	30
