Removing and installing rear center seat belt - AR91.40-P-0683GH

MODEL 163.136/154/172 up to 31.8.99

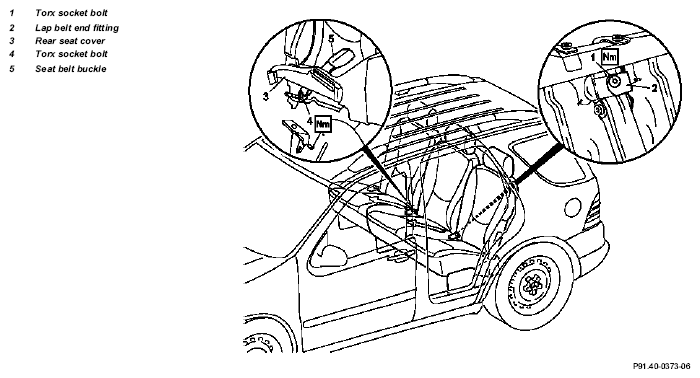

Fig 1: Identifying Rear Center Seat Belt Components

	Removing, installing
1	Fold rear seat backrest forward	See Owner's Manual
2	Unscrew screw (1) for seat belt end fitting on rear seat	Inner Torx screw for seat belt is fastened to rear bench seat frame.
			*BA91.40-P-1001-01D
		Torx bit set	Figure
3	Pull lap belt end fitting (2) down and out on rear seat
4	Pull clip channel for rear seat cover (3) off of right side of seat frame
5	Remove screw (4) on belt buckle		*BA91.40-P-1006-01D
		Torx bit set	Figure
6	Pull belt buckle (5) down and out	Check seat belt and belt buckle for damage.
7	Install in the reverse order	Installation:  Ensure they are installed free of stress. Do not install seat belt twisted.

Seat belts/emergency tensioning retractors

Number	Designation		Model 163 up to 08/99	Model 163 as of 09/99
BA91.40-P-1001-01D	Screw on seat belt end fittings	Nm	35	35
BA91.40-P-1006-01D	Bolt of seat belt buckle to rear seat	Nm	35	45

Fig 2: Identifying Torx Bit Set (000 589 01 10 00)
