Removing and installing airbag unit on steering wheel - AR91.60-P-0660GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

up to 31.08.01

Fig 1: Identifying Airbag Unit Components (Up To 31.08.01)

as of 01.09.01

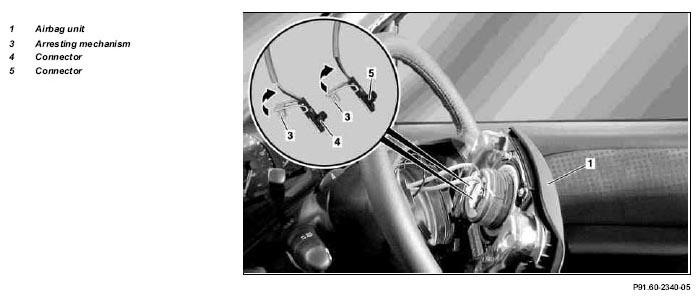

Fig 2: Identifying Airbag Unit Components (As Of 01.09.01)

	Remove/install
	Injury hazard  when performing test and repair work on airbags and emergency tensioning retractors	Store airbag unit with expulsion area on top, do not subject to temperatures above 100 °C. Interrupt power supply when working on such units.	AS91.00-Z-0001-01A
	Important instructions for performing repair, body work and welding on vehicles with airbag and emergency belt tensioner units	Models 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 414, 638, 690.6, 901, 902, 903, 904, 905 Model 461 with engine 602.983 Model 463 up to 30.11.00 Model WD141, WD241, WD341, WD641, WD741, XD141, XD241, XD341, XD441, XD541, XD641, XD741, YD141, YD241, YD341, YD441, YD541, YD641, YD741	AH91.00-P-0002-01B
	Legal provisions concerning handling and storage of airbag and emergency tensioning retractor units	Models 124, 129, 140, 163, 168, 170, 202, 203, 208, 209, 210, 211.004/ 006/ 016/ 061/ 065/ 070, 215, 220, 230, 314, 316, 318, 414, 461, 463, 638, 668, 670, 690.6, 901, 902, 903, 904, 905, 950, 952, 953, 954, 970, 972, 974, 975, 976 Model WD141, WD241, WD341, WD641, WD741, XD141, XD241, XD341, XD441, XD541, XD641, XD741, YD141, YD241, YD341, YD441, YD541, YD641, YD741	AH91.00-P-0004-01A
	Notes regarding the disposal of airbag and belt tensioner units	All models	OS91.00-P-0001-01A

1	Separate ground cable of battery		AR54.10-P-0003A
2	Remove screws (2)	Starting from the straight-ahead position, turn steering wheel by 90 to obtain better access to the bolts.
			*BA91.60-P-1001-01A
		Screwdriver bit	Fig 3
3	Lift airbag unit from steering wheel
4.1	Open arresting mechanism (3) on plug connector (4)	Up to 31.08.01.
4.2	Open arresting mechanism (3) on both plug connectors (4, 5)	As of 01.09.01.
5.1	Unplug plug connector (4) from squib	Up to 31.08.01. Installation:  plug connector should latch audibly.
5.2	Unplug connector (4, 5) from squib.	As of 01.09.01. Installation:  plug connector should latch audibly. Close arresting mechanism (3) on the plug connectors after latching.
6	Remove airbag unit (1) out of steering wheel	If airbag unit is replaced: ↓
		Make airbag units unusable	AR91.60-P-0611A
7	Install in the reverse order	The steering wheel must always be replaced after the driver airbag unit has deployed.
8	Check automatic return of combination switch
9	Carry out diagnosis	According to specifications in diagnosis manual.

Airbag

Fig 3: Identifying Screwdriver Bit (126 589 00 10 00)
