Remove/install split rear seat backrest arm rest - AR91.12-P-1750GH

MODELS 163.136/154/172 as of 1.9.9 163.113/128/157/174/175

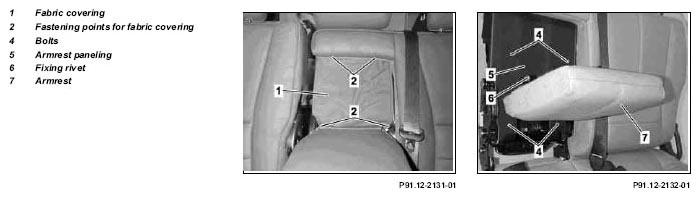

Fig 1: Identifying Split Rear Seat Backrest/Arm Rest Components
G04609373
REMOVINGINSTALLING Remove/install
1 Fold down armrest (7)
2 Detach fabric cover (1) IMPORTANT Carefully unhook wires inserted at the fastening points at the top and bottom of the fabric covering (2).
3 Remove upholstery below the armrest IMPORTANT Unscrew 2 bolts on the bottom of the rear side, and turn upholstery upwards, in order to detach locating tab at the rear.
4 Unscrew screws (4) and remove paneling of armrest (5) IMPORTANT Carefully unhook retaining clip on the outside of the armrest paneling.
5 Remove fixing rivet (6) from the armrest mounting
6 Detach armrest bracket from the mounting on the rear backrest frame IMPORTANT Press armrest mount upwards
7 Remove armrest (7) forwards
8 Install in the reverse order
