Remove/install seat belts for third row of seats - AR91.40-P-2000GH
MODEL 163.113 /128 /136 /154 /157 /172 /175 with CODE (847) 3rd seat row
| Remove, Install | |||
|---|---|---|---|
| 1 | Remove rear roof frame paneling | AR68.30-P-4470GH | |
| 2 | Remove paneling on C-pillar | AR68.30-P-4490GH | |

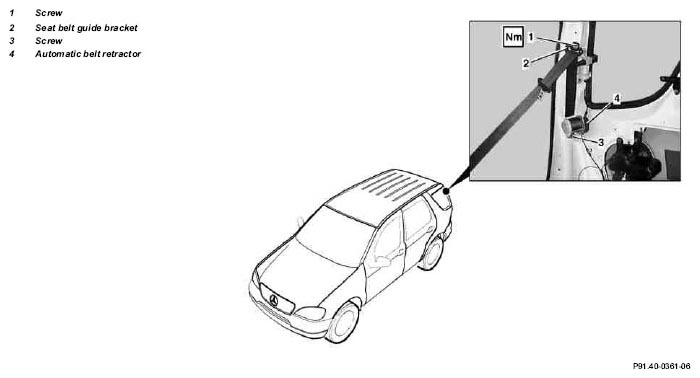

| 3 | Unscrew bolt (1) at seat belt guide bracket (2) | *BA91.40-P-1002-01D | |
| 4 | Unscrew bolt (3) at automatic belt retractor (4) | *BA91.40-P-1003-01D | |
| 5 | Remove automatic belt retractor (4) | ||
| 6 | Check seat belts for damage | ||
| AP91.40-P-9150GH | |||
| 7 | Install in the reverse order |
| Number | Designation | Model 163 up to 08/99 | Model 163 as of 09/99 | |
|---|---|---|---|---|
| BA91.40-P-1002-01D | Screw on rear upper belt guide fitting | Nm | 30 | 30 |
| BA91.40-P-1003-01D | Screw to rear inertia reel | Nm | 30 | 30 |
