Remove/install seat adjustment switch unit on front seat - AR91.29-P-0003GI
MODEL 163.113, 163.136 #A as of 051500, 163.136 #X as of 708319, 163.154 #A as of 051500, 163.154 #X as of 708319, 163.157 /172 with CODE (221b) Electrically adjustable driver and passenger seat
MODEL 163.128/174/175
| Remove/install | |||
|---|---|---|---|

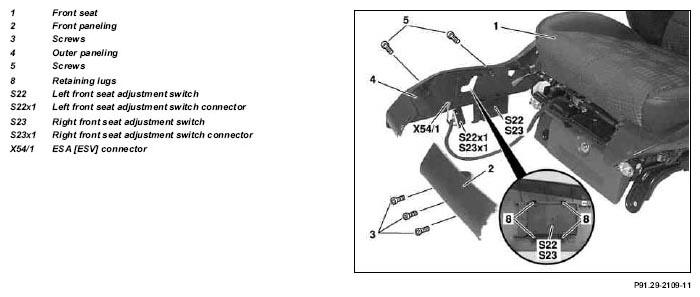

| 1 | Unscrew screws (3) from the front paneling (2) | ||
| 2 | Pull down the front paneling (2) approx. 1 cm and remove forwards | ||
| 3 | Unscrew screws (5) from the outer paneling (4) | ||
| 4 | Remove outer paneling (4) | ||
| 5 | Disconnect left front seat adjustment switch connector (S22x1) or right front seat adjustment switch connector (S23x1) from the left front seat adjustment switch (S22) or right front seat adjustment switch (S23). | ||
| 6.1 | Disconnect seat adjustment connector (X54/1) | ||
| 7 | Press retaining lugs (8) from left front seat adjustment switch (S22) or right front seat adjustment switch (S23) inwards | ||
| 8 | Remove left front seat adjustment switch (S22) or right front seat adjustment switch (S23) | ||
| 9 | Install in the reverse order |
