Remove/install rear seat belt buckle - AR91.40-P-1516GK

MODEL 163.136 /154 /172 as of 1.9.99, 163.113 /128 /157 /175 with CODE (293) Left and right rear side airbag 40% rear seat

MODEL 163.174 40% Rear seat

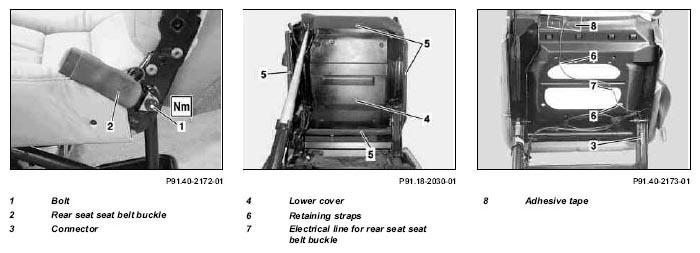

Fig 1: Identifying Rear Seat Belt Buckle Components

	Remove/install
1	Fold down 60% rear seat	See Operating Instructions
2	Fold backrest of 40% rear seat forwards	See Operating Instructions
3	Remove side covers on rear seat belt buckle
4	Unscrew bolt (1) from rear seat belt buckle (2)		*BA91.40-P-1006-01D
5	Turn ignition key to "0" position	To avoid fault codes.
6	Disconnect connector (3) from electrical line of rear seat belt buckle
7.1	Remove lower cover (4)	Only with 3rd seat row, code 847.
8	Remove retaining straps (6)
9	Unhook rear seat cover on reverse side and pull out electrical line for rear seat belt buckle (7) on rear seat cushion	Loosen adhesive tape (8). Installation:  Route electrical line for rear seat belt buckle (7) correctly and fasten to rear seat cushion frame using new adhesive tape (8).
10	Remove rear seat belt buckle (2)	Installation:  Check rear seat belt buckle for damage.
11	Install in the reverse order

Seat belts/emergency tensioning retractors
