Remove/install rear seat belt buckle - AR91.40-P-1516GJ

MODEL 163.136 /154 /172 as of 1.9.99, 163.113/128/157/174/175 60% outer rear seat

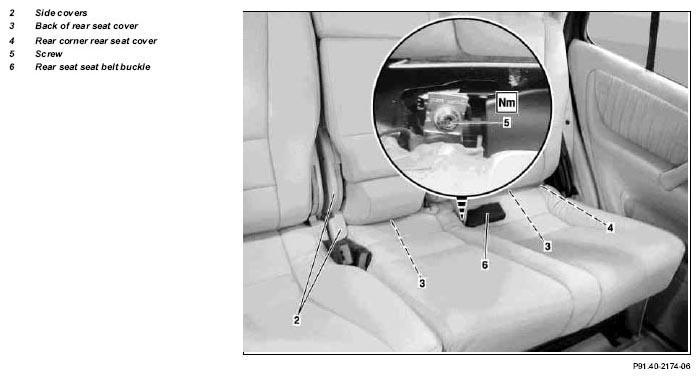

Fig 1: Identifying Rear Seat Belt Buckle Components

	Removing, Install
1	Fold 40 % rear seat downward	See Operating Instructions
2.1	Turn ignition key to "0" position	Only with side airbag in left and right rear, code 293. To avoid fault codes
3	Remove load area floor folding section of 60% rear seat	See Operating Instructions
4.1	Disconnect connector of electrical line of rear seat belt buckle and detach from rear seat cushion frame	Only with side airbag in the rear (left and right), code 293.
5	Remove side covers (2)
6	Unhook rear seat cover on back (3) and rear corner(4)
7	Unscrew bolt (5) from rear seat belt buckle (6)	Lift up rear of rear seat cushion and press forwards.
			*BA91.40-P-1006-01D
8	Remove rear seat belt buckle (6) and remove belt end fitting through rear seat cushion	Do not damage rear seat cover! Installation:  Check rear seat belt buckle for damage.
9	Remove locking plate, disconnect rear seat belt buckle and belt end fitting	Installation:  Replace locking plate!
10	Install in the reverse order
