Remove/install rear seat belt buckle - AR91.40-P-1516GH

MODEL 163.136 /154 /172 as of 1.9.99, 163.113 /128 /157 /175 except CODE (293) Left and right rear side bag 40% rear seat

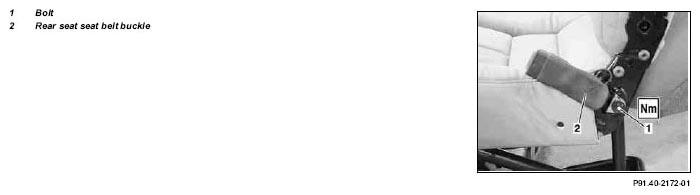

Fig 1: Identifying Rear Seat Seat, Belt Buckle And Bolt
G04609402
REMOVINGINSTALLING Remove/install
1 Fold down 60% rear seat IMPORTANT See Operating Instructions
2 Fold backrest of 40% rear seat forwards IMPORTANT See Operating Instructions
3 Remove side covers on rear seat belt buckle
4 Unscrew bolt (1) from rear seat belt buckle (2) TORQUE SPECIFICATION *BA91.40-P-1006-01D
5 Remove rear seat belt buckle (2) IMPORTANTInstallation:  Check rear seat belt buckle for damage.
6 Install in the reverse order
TORQUE SPECIFICATION Seat belts/emergency tensioning retractors

Number Designation Model 163 as of 09/99
BA91.40-P-1006-01D Bolt, belt buckle to rear seat Nm 45
