| 1 |
Remove rear cargo space floor flaps |
See Operating Instructions |
|
| 2 |
Remove outer cover from rear seat |
Do not remove remaining covers. |
AR91.12-P-1100GH |
| 3 |
Detach lateral curtain at bottom |
|
|
| 4 |

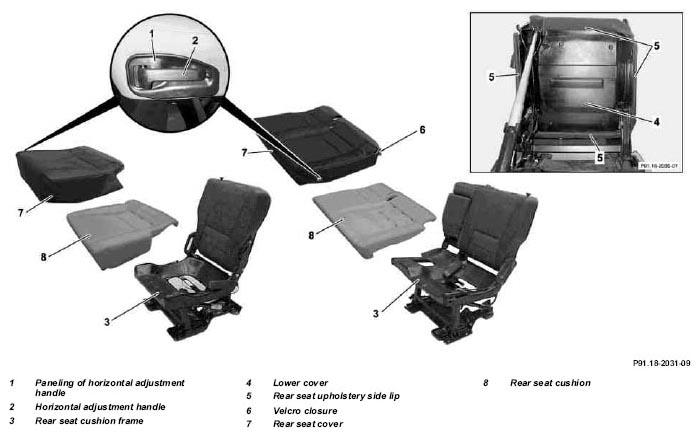

Remove paneling of horizontal adjustment handle (1) |
Risk of breakage!
Unscrew screw and press paneling of horizontal adjustment handle forwards in order to unhook the retaining lugs. |
|
| 5 |
Remove side cover on rear backrest fitting |
|
|
| 6.1 |
Remove lower cover (4) |
Only with 3rd seat row, code 847. |
|
| 7 |
Detach rear seat cover (7) and Velcro closure (6) at the outside of the rear seat cushion frame (3) |
|
|
| 8.1 |
Turn ignition key to "0" position |
Only with side airbag in left and right rear, code 293. To avoid fault codes. |
|
| 9.1 |
Disconnect connector of electrical line of rear side seat belt buckle and move out of retaining clip |
Only with side airbag in the rear (left and right), code 293. |
|
| 10.1 |
Carefully lift up rear seat cover and unscrew bolt from belt end fitting |
Do not damage rear seat over. |
|
| |
|
Only 60% rear seat. |
|
| |
|
 |
*BA91.40-P-1001-01D |
| |
|
Torx bit set |
Figure |
| 11.1 |
Remove belt end fitting together with rear seat belt buckle though the rear seat cushion |
Do not damage rear seat cover.
Only 60% rear seat. |
|
| 12 |
Remove rear seat cushion (8) from rear seat cushion frame (3) |
|
|
| 13 |
Pull off rear seat upholstery (7) until the stapled wire rings become visible |
|
|
| 14 |
Bend stapled wire rings up |
|
|
| 15 |
Detach the staple wires from the opened wire rings at rear seat cover (7) |
|
|
| 16 |
Remove rear seat cover (7) from rear seat upholstery (8) |
|
|
| 17 |
Install in the reverse order |
|
|
