Seats, Restraint Systems -- 163 Chassis
>>
Self-Diagnostic System
>>
Ignition circuit front passenger airbag test electrics airbag (AB) - AD91.60-P-6000-09GH
Ignition circuit front passenger airbag test electrics airbag (AB) - AD91.60-P-6000-09GH

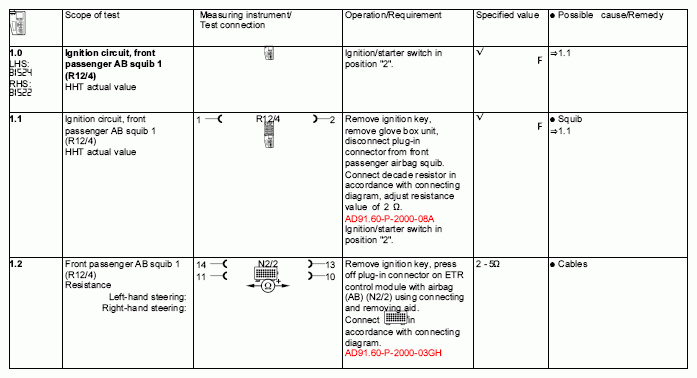

Fig 1: Ignition Circuit Front Passenger Airbag Test Electric Airbag
