Connection diagram socket box to airbag control module connector - AD91.60-P-2000-03GH

Model 163, Model 210 up to 6/99 with windowbag, with rear side airbag

Model 210 as of 6/98 up to 6/99  , USA ONLY , JAPAN ONLY

Model 210 as of 7/99

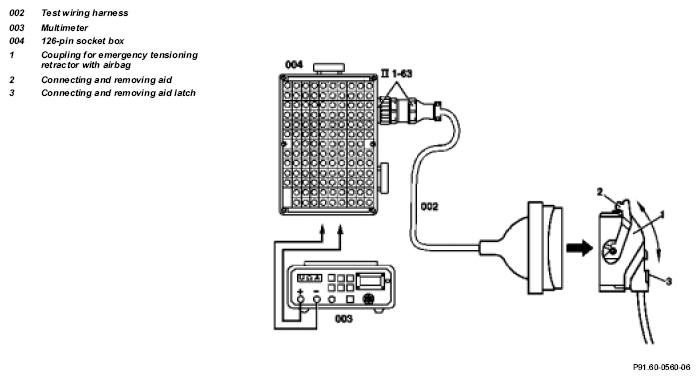

Fig 1: Connecting Diagram Socket Box To Airbag Control Module Connector
G04609312
