Airbag (AB) test of electrical system front right seat belt buckle/belt lock switch - AD91.60-P-6000-25GH
Airbag (AB) test of electrical system front right seat belt buckle/belt lock switch - AD91.60-P-6000-25GH

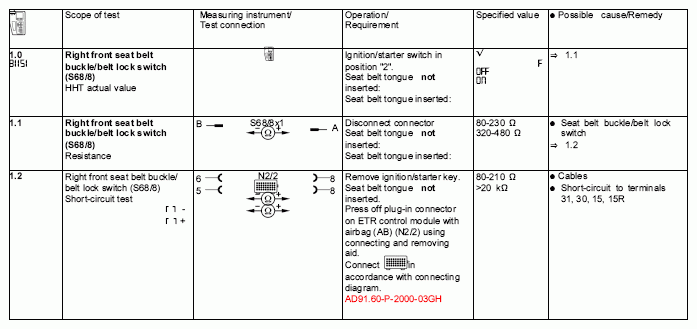

Fig 1: Airbag (AB) Test Of Electrical System Front Right Seat Belt Buckle/Belt Lock Switch
