AB test of electrical system passenger seat occupied recognition with child seat recognition - AD91.60-P-6000-37GH

Model 163 as of 1.3.98 up to 30.11.99

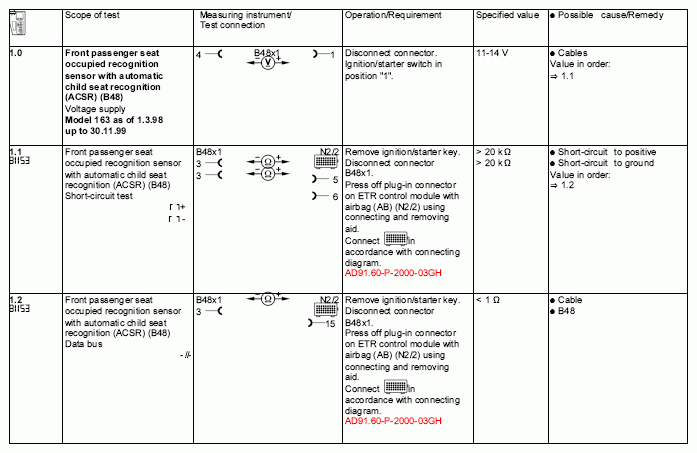

Fig 1: AB Test Of Electrical System Passenger Seat Occupied Recognition With Child Seat Recognition
G04609326
