Supplemental restraint system (SRS), location of components - GF91.60-P-0002-01GH

Model 163 up to 11/99

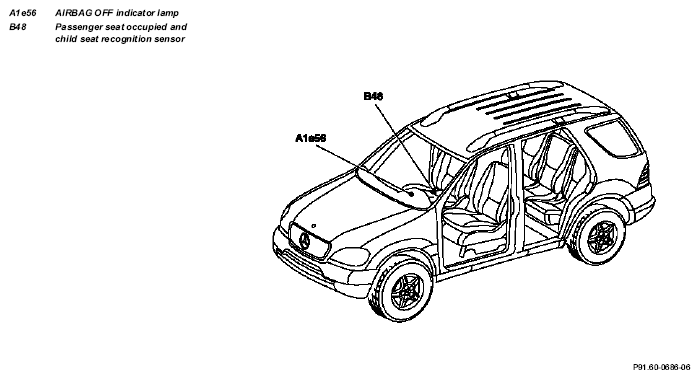

Fig 1: Identifying Supplemental Restraint System Components Location (1 Of 3)

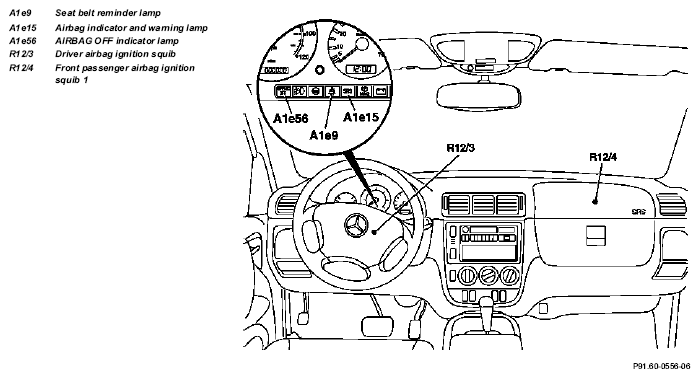

Fig 2: Identifying Supplemental Restraint System Components Location (2 Of 3)

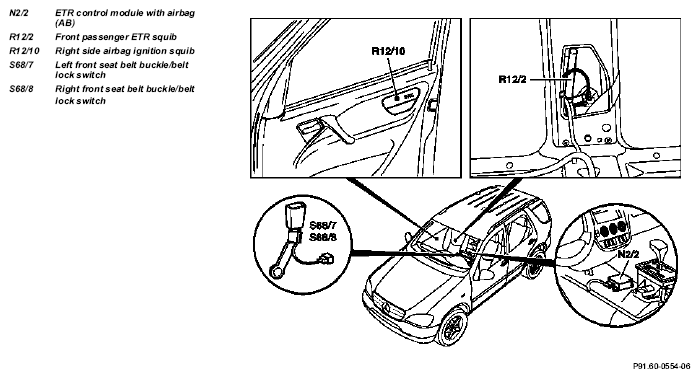

Fig 3: Identifying Supplemental Restraint System Components Location (3 Of 3)
