Seats, Restraint Systems -- 163 Chassis
>>
Basic Knowledge
>>
Supplemental Restraint System (SRS) - Block Diagram - GF91.60-P-0002-03GI
Supplemental Restraint System (SRS) - Block Diagram - GF91.60-P-0002-03GI
Model 163-12/99 to 8/00

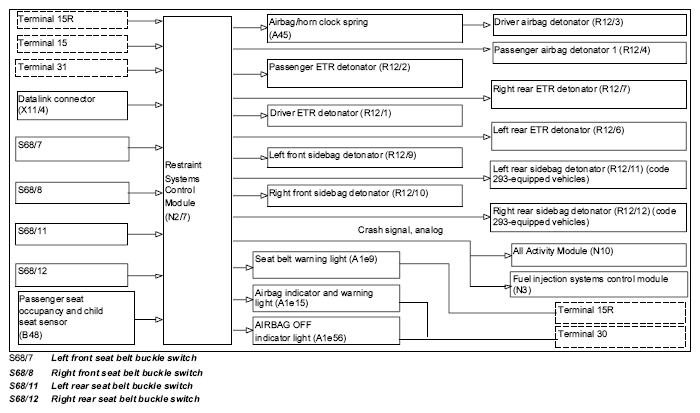

Fig 1: Supplemental Restraint System - Block Diagram (Model 163-12/99 To 8/00)
