Supplemental Restraint System (SRS) - Block Diagram - GF91.60-P-0002-03GHA
Supplemental Restraint System (SRS) - Block Diagram - GF91.60-P-0002-03GHA
Model 163 Applicable as of 9.00

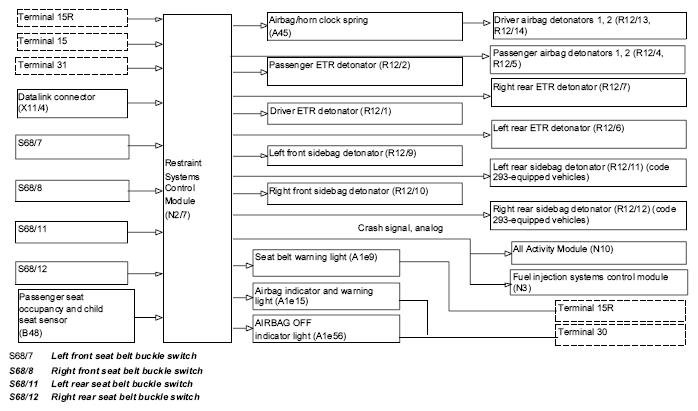

Fig 1: Supplemental Restraint System - Block Diagram (Model 163 Applicable As Of 9.00)
