Airbag indicator and warning lamp, location/purpose - GF91.60-P-4011B
MODEL 163 as of 1.12.99

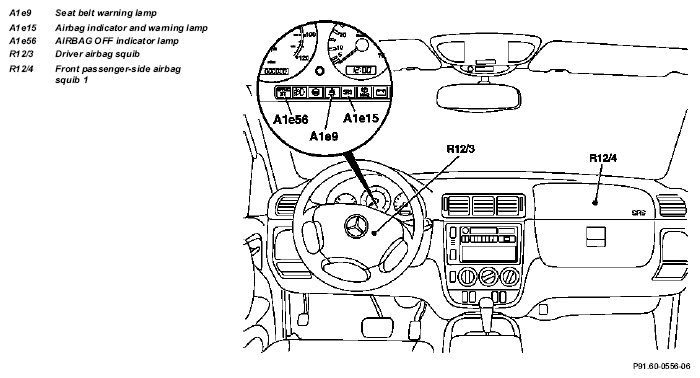

| Airbag indicator and warning lamp, location | The airbag indicator and warning lamp (A1e15) is located in the instrument cluster (A1). | ||
| Airbag indicator and warning lamp, purpose | The airbag indicator and warning lamp comes on when the system is malfunction-free and the ignition or glow starter switch is turned to position "1" and goes out again after 4 to 28 seconds. Faults which could prevent actuation of the SRS system, or cause erroneous actuation are indicated by the lamp flashing. |
