Supplemental Restraint System (SRS) - Location of components driver/passenger airbags, emergency tensioning retractors and side airbags - GF91.60-P-0002-06B

Model 163 as of 1.12.99

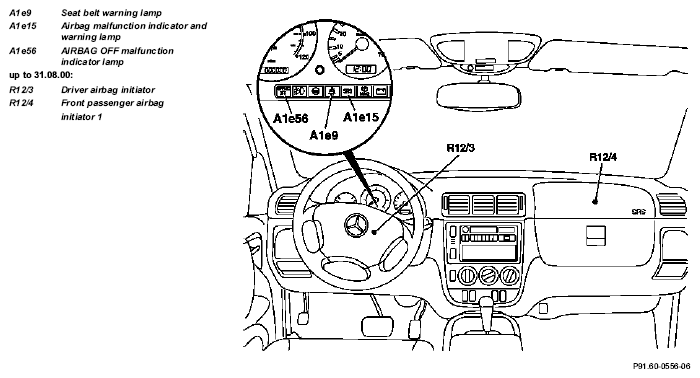

Fig 1: Identifying Supplemental Restraint System Components Location (Up To 31.08.00)

as of: 1.09.00

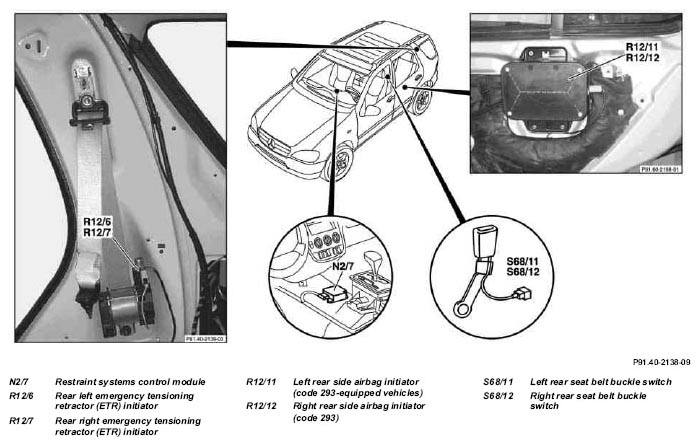

Fig 2: Identifying Supplemental Restraint System Components Location (As Of: 1.09.00)

as of 1.09.00:

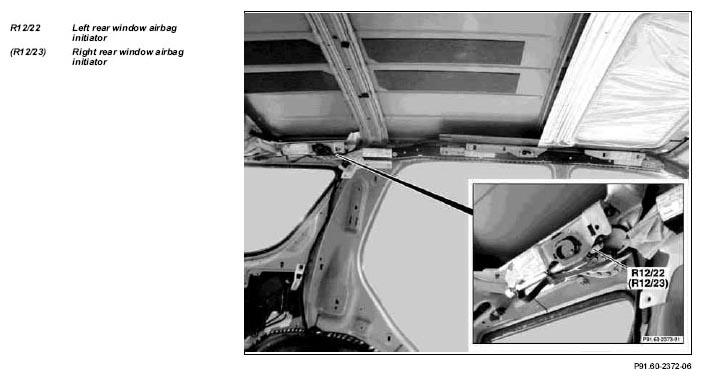

Fig 3: Identifying Supplemental Restraint System Components Location (As Of: 1.09.00) (1 Of 5)

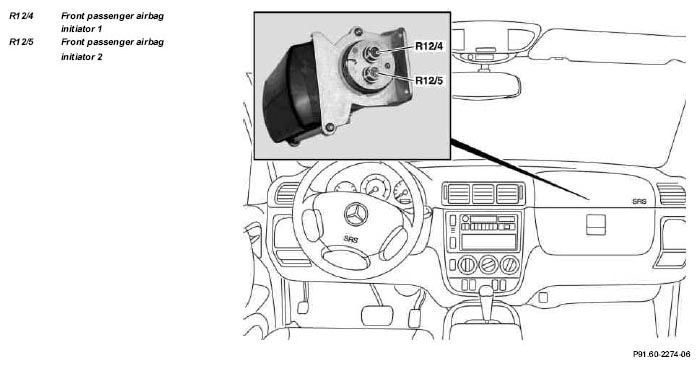

Fig 4: Identifying Supplemental Restraint System Components Location (As Of: 1.09.00) (2 Of 5)

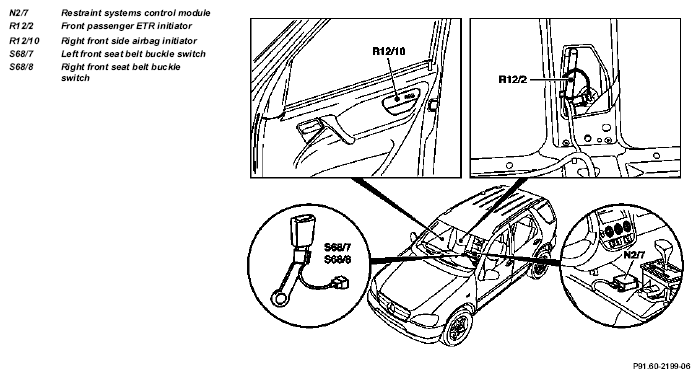

Fig 5: Identifying Supplemental Restraint System Components Location (As Of: 1.09.00) (3 Of 5)

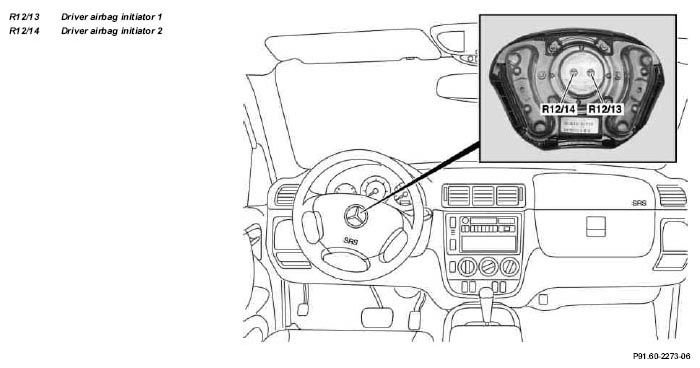

Fig 6: Identifying Supplemental Restraint System Components Location (As Of: 1.09.00) (4 Of 5)

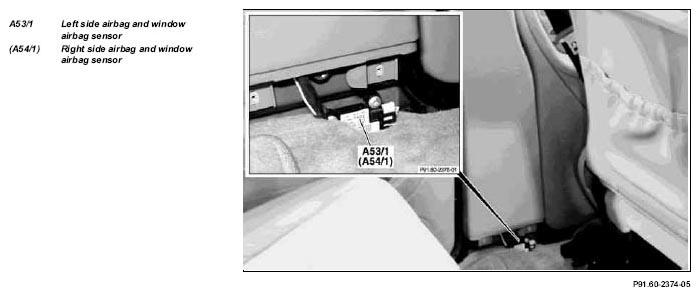

Fig 7: Identifying Supplemental Restraint System Components Location (As Of: 1.09.00) (5 Of 5)

As of: 1.09.01

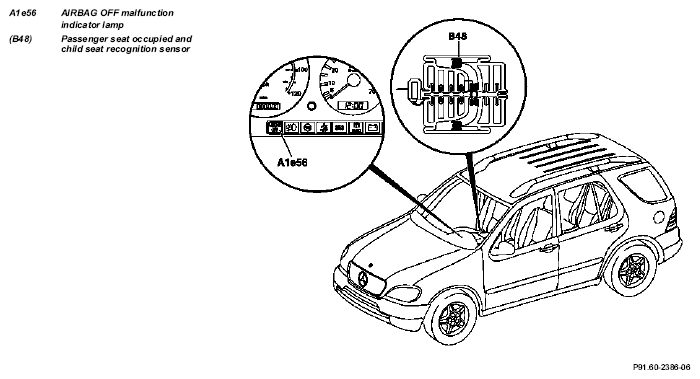

Fig 8: Identifying Supplemental Restraint System Components Location (As Of: 1.09.01)
