Cloudiness In Areas Covered By Transportation Foam (LI98.10-P-074286)
Publication date: 2022-01-28Reference number: LI98.10-P-074286
CLOUDINESS IN AREAS COVERED BY TRANSPORTATION FOAM
TECHNICAL SERVICE BULLETIN
Reference Number(s): LI98.10-P-074286 Version 1, Date of Issue:
January 28, 2022
| MERCEDES-BENZ: | All Vehicles |
| FUNCTION GROUP: | 98.10 - Paintwork - metal surface |
COMPLAINT

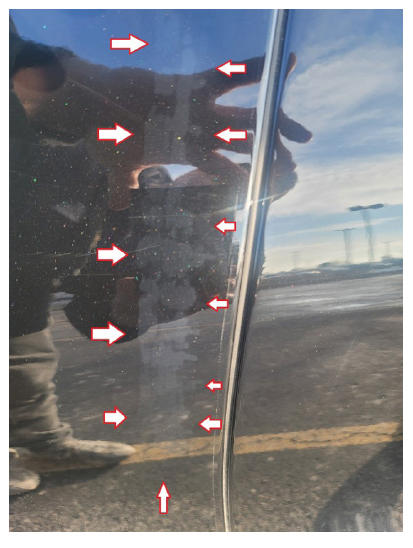

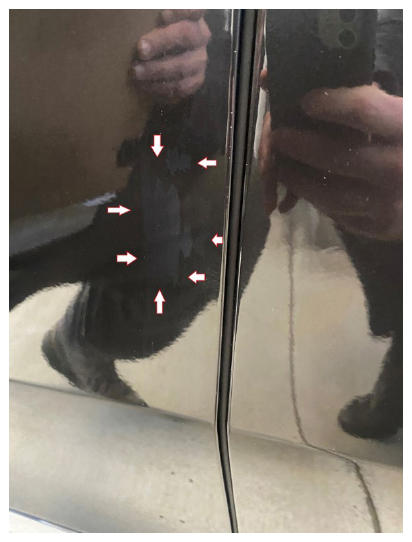

Cloudiness or fogged areas appear in areas that were covered by transportation foam, such as along exterior door panel edges. See attachments for examples of complaint.
ATTACHMENTS
ATTACHMENTS
| File | Description |
|---|---|
| Picture1.jpg | |
| Picture2.jpg | |
| Picture3.jpg |
CAUSE
Adhesives from the foam used in transportation may have transferred to the paint.
REMEDY
Heat the cloudy area with an IR heater to 80-90°C and observe whether the cloudiness changes as a result of the effect of heat. Generally, the spots should disappear after 30 minutes.
While the surface is warm, use cleaning agent A 005 989 19 71 to ensure the adhesive is removed.
SYMPTOMS
SYMPTOMS
| Overall vehicle > Paint/corrosion > Paint damage > Deposits |
| Overall vehicle > Paint/corrosion > Paintwork Fault > Clouding |
| Overall vehicle > Paint/corrosion > Paintwork Fault > Shadows |
| Overall vehicle > Paint/corrosion > Paintwork Fault > Discoloration |
OPERATION NUMBERS/DAMAGE CODES
OPERATION NUMBERS/DAMAGE CODES
| Op. no. | Operation text | Time | Damage code | Note |
