Door Pocket In Door Lining Makes Noises Or Broken (LI72.10-P-045981)

Publication date: 2009-02-03
Reference number: LI72.10-P-045981
Supersedes refnos: 72.10/102

DOOR POCKET IN DOOR LINING MAKES NOISES OR BROKEN

TECHNICAL SERVICE BULLETIN

Reference Number(s): LI72.10-P-045981 Version 1 (T-B-72.10/102, October 7, 2008), Date of Issue: February 3, 2009

Mercedes-Benz:	Model 163.154/157/172/174/175, as of VIN A133536
Design Group:	72.10 Front door
Reason For Change:

COMPLAINT

Door Pocket in Door Lining Makes Noises or Broken

CAUSE

Excessive load on the door pocket.

REMEDY

To resolve, replace the door pocket (Fig 1) as per WIS document AR72.10-P-1045GH. Note: A new repair method has been released. It is no longer necessary to replace the entire door panel assembly. Do not replace the complete door panel assembly.

NOTE: The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on October 7, 2008. Please refer to Netstar -> Star TekInfo -> Star Time for the most current labor time allowance.

ATTACHMENTS

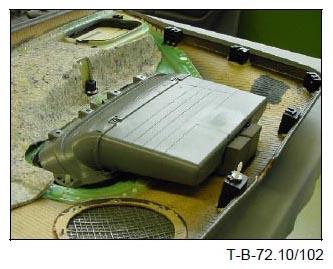

Fig 1: Door Pocket

SYMPTOMS

Body / Door / Door/Flap / Door / Noise /

PARTS

Part number	Designation	Qty	Note	EPC	Non- EPC
A163 720 05 58 ES2 code	Door Pocket (Left) (See EPCnet Group 72/200 for ES2 color code)	1			X
A163 720 06 58 ES2 code	Door Pocket (Right) (See EPCnet Group 72/200 for ES2 color code)	1			X

WORK UNITS

Op. no.	Operation text	Time	Damage code	Note
72-6405	INNER DOOR PANEL - ON ONE FRONT DOOR, R & R	0.6 hrs.	72402 38	Model Indicator (s): K1, K2, K3, K4, K5
72-7183	DOOR POCKET - AT ONE FRONT DOOR, REPLACE (INNER DOOR PANEL, REMOVED)	0.7 hrs.		Model Indicator (s): K1, K2, K3, K4, K5
				If necessary:
72-6405	INNER DOOR PANEL - ON ONE FRONT DOOR, R & R	0.6 hrs.		Model Indicator (s): K1, K2, K3, K4, K5
72-7183	DOOR POCKET - AT ONE FRONT DOOR, REPLACE (INNER DOOR PANEL, REMOVED)	0.7 hrs.		Model Indicator (s): K1, K2, K3, K4, K5

WIS-REFERENCES

Document number	Title	Note	Allocation
AR72.10-P-1045GH	Remove/install door pocket on front door lining		Remedy
