PREPARATION INSTRUCTIONS FOR DEACTIVATION/ACTIVATION OF REAR DOOR AIRBAG
TECHNICAL SERVICE BULLETIN
Reference Number(s): T-SI-91.60/45, Date of Issue:
October 22, 2000
| MERCEDES-BENZ: | MODEL 163 |
| GROUP: | 91.60 - Seats, Bunks, Restraint Systems - Airbag |
SUBJECT
PREPARATION INSTRUCTIONS FOR THE DISCONNECTION/DEACTIVATION AND RECONNECTION/ACTIVATION OF REAR DOOR MOUNTED AIRBAGS
SERVICE INFORMATION
IMPORTANT:
This procedure can only be performed under the supervision of a Mercedes-Benz USA Technical Specialist. An Authorization to Deactivate/Reactivate a Side Impact Airbag form must be filled out, signed by the client and notarized. The Technical Specialist will provide the form. Please contact Client Assistance at 1-800-367-6372 to initiate the process.
Under no circumstances should the airbags be disconnected/reconnected and the vehicle returned to the client without the Technical Specialist performing the deactivation/reactivation and systems function test.
NOTE:
BOTH rear door airbags MUST be deactivated/reactivated. Never deactivate/reactivate only one rear door airbag.
PROCEDURE
A. DISCONNECT REAR DOOR AIRBAGS
- Turn ignition switch OFF and remove key.
- Remove rear door panels refer to WIS AR72.12-P-1010GH.

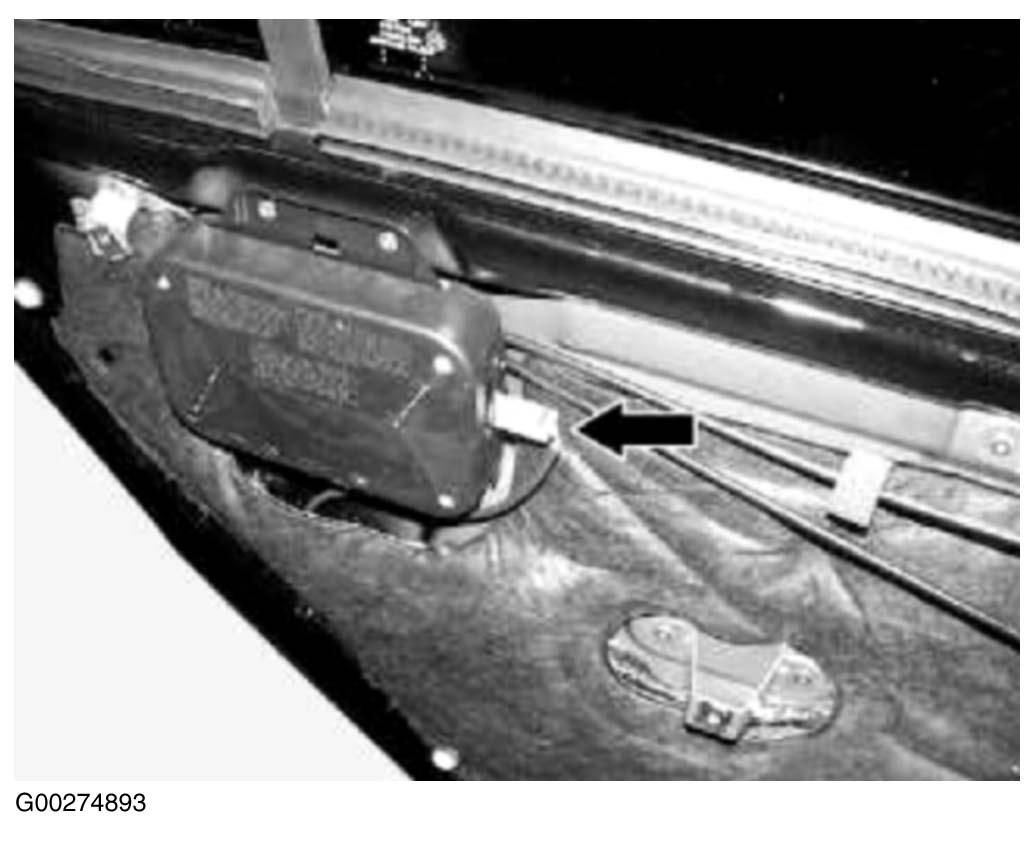

- Disconnect airbag harness connector (arrow Fig 1 ) from rear door airbag squib.

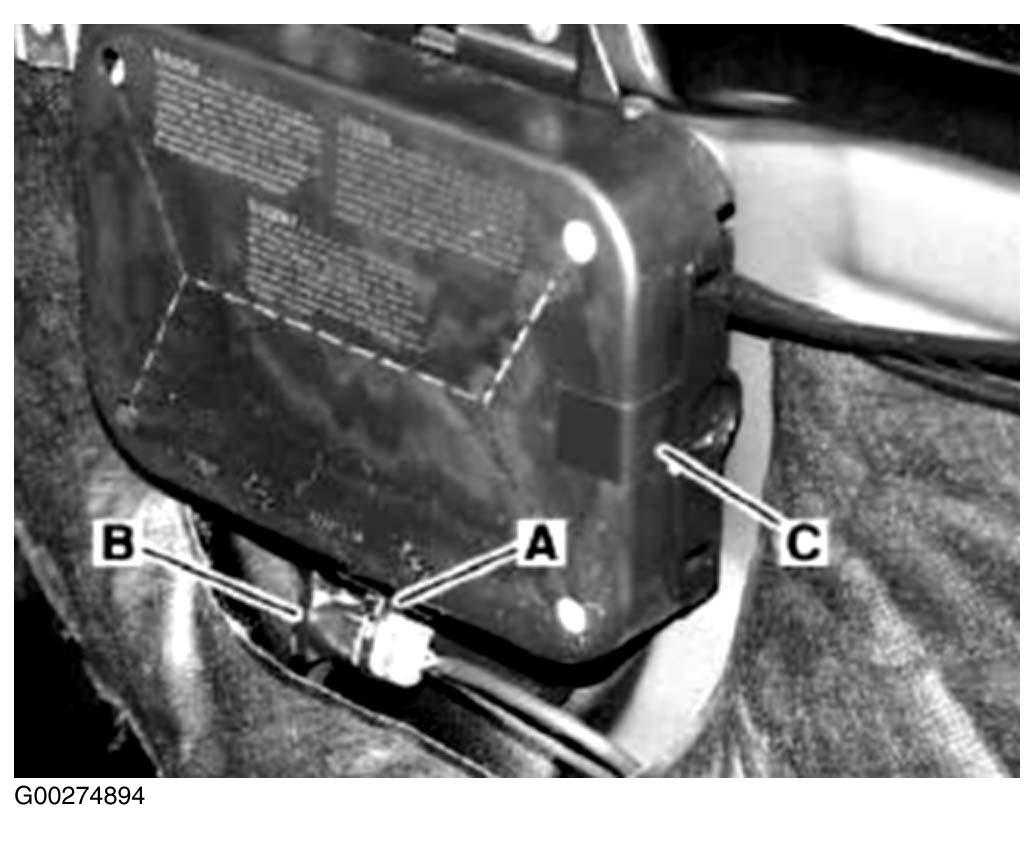

- Cover airbag harness connector with premium quality electrical tape (B, Fig 2 ) which is resistant to heat (e.g. 3M Scotch 33(R)).
- Secure airbag harness connector with cable tie (A, Fig 2 ).
- Cover airbag squib with premium quality electrical tape (C, Fig 2 ) which is resistant to heat (e.g. 3M Scotch 33(R))
- Reinstall door panel in reverse order of removal.
- Remove existing (if applicable) Side Impact Airbag Warning Label part no. A211 817 22 20 from each C pillar.
- Place one label S-2775-L02 on each right and left C pillar in place of label that was removed in above step 8.
- Place one label S-2775-L01 directly on the front outside cover of the Operator's Manual for the vehicle.
- Place one label S-2775-L03 on the inside of each right and left quarter window.
B. REPROGRAM RESTRAINT SYSTEM CONTROL MODULE (N2/7)
The reprogramming of module N2/7 cannot be performed by the retailer. The deactivation/reactivation procedure can only be performed by a Mercedes-Benz Technical Specialist.
PARTS INFORMATION
PARTS INFORMATION
| Qty. | Part Name | Part Number |
|---|---|---|
| 2 | Cable ties | Local purchase |
WARRANTY INFORMATION
This procedure is performed upon customer request and is not covered under warranty.
RECOMMENDED LABOR TIME
| Description | Operation Number | Time (hrs.) | Model Indicator (s) |
|---|---|---|---|
| Rear door airbag deactivation | 910000 | 1.5 | K0 |
