Remove/install hot film mass air flow sensor together with air intake pipe - AR07.07-P-1454A
ENGINE 112.910 in MODEL 202.026 /086
ENGINE 112.920 in MODEL 202.029 /089
ENGINE 112.911 in MODEL 210.061/261
ENGINE 112.921 in MODEL 210.063 /263 /081 /281 /663
ENGINE 112.941 in MODEL 210.065 /082 /265 /282
ENGINE 112.940 in MODEL 208.365 /465
ENGINE 112.942 in MODEL 163.154
ENGINE 112.970 in MODEL 163.157
ENGINE 113.940 in MODEL 210.070 /270

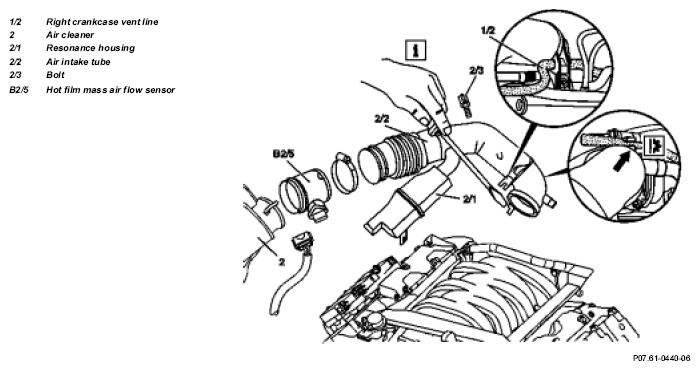

Shown on Engine 112
| Fig. item, etc. | Work instructions | ||
|---|---|---|---|
| Cable actuator of electronic accelerator | Removal: Before the air intake tube (2/2) is removed, detach cable (arrow) | ||
| Lock of air intake tube to actuator electronic accelerator | Removal: Press plate to bottom by means of screwdriver | ||
| 1/2 | Right crankcase vent line | Installation: Slip-on from below | |
| 2 | Air filter | ||
| 2/1 | Resonance housing | Detach from above out of the rubber mounting | |
| 2/2 | Air intake pipe | Bolt (2/3) | |
| B2/5 | Hot film MAF sensor | Unplug electrical connector. Slacken hose clamp |
