Testing of electrical system for ME-SFI fuel injection system hot film air mass sensor - AD07.61-P-6000-04A

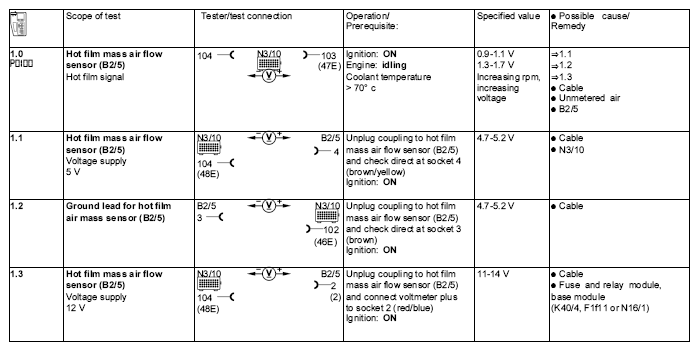

Fig 1: Testing Of Electrical System For ME-SFI Fuel Injection System Hot Film Air Mass Sensor
G04606042Courtesy of MERCEDES-BENZ USA
