ME-SFI control module terminal 87 - ME-SFI ignition system - Testing electrics - AD07.61-P-6001-02B

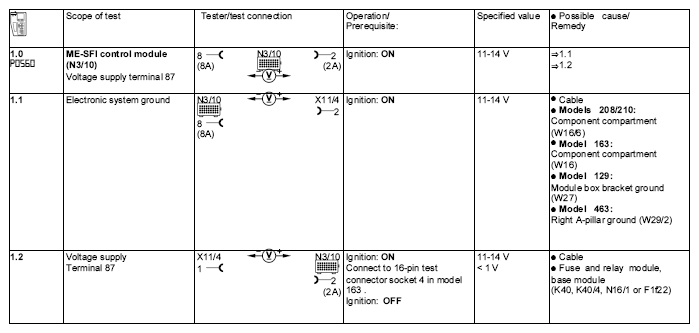

Fig 1: ME-SFI Control Module Terminal 87 - ME-SFI Ignition System - Testing Electrics
G04606091Courtesy of MERCEDES-BENZ USA
