Cruise control pushbutton switch, testing of electrical system, ME-SFI cruise control with variable speed limit - AD07.61-P-6003-01E

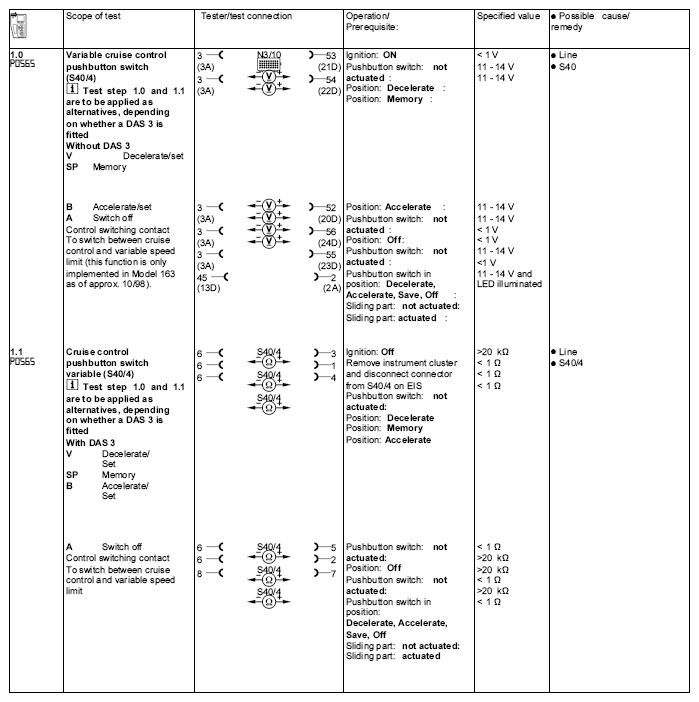

Fig 1: Cruise Control Pushbutton Switch, Testing Of Electrical System, ME-SFI Cruise Control With Variable Speed Limit
G04606132Courtesy of MERCEDES-BENZ USA
