Connector assignment for ME-SFI gasoline injection and ignition system - AD07.61-P-2000-02B

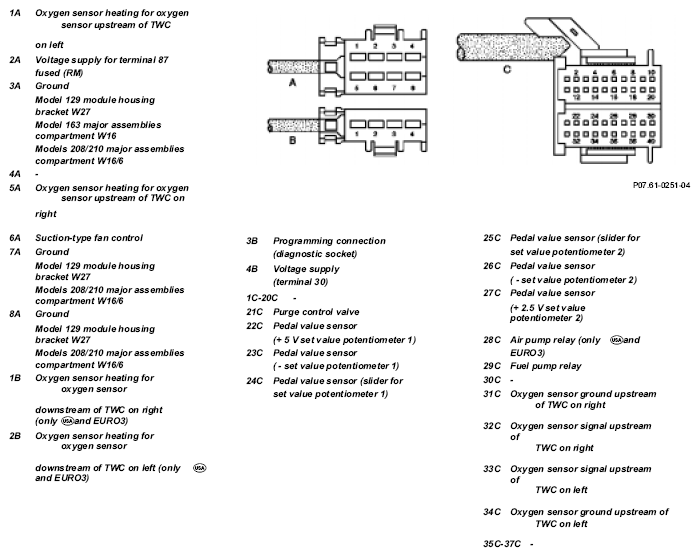

Fig 1: Identifying Connector Assignment For ME-SFI Gasoline Injection And Ignition System (1 Of 4)
G04605976Courtesy of MERCEDES-BENZ USA

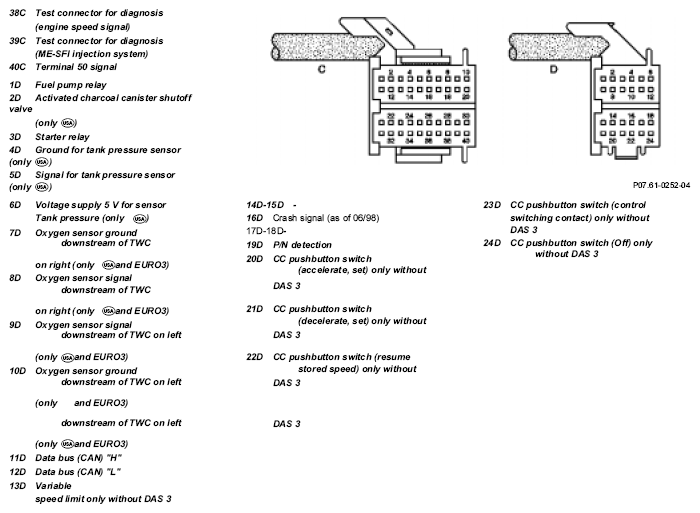

Fig 2: Identifying Connector Assignment For ME-SFI Gasoline Injection And Ignition System (2 Of 4)
G04605977Courtesy of MERCEDES-BENZ USA

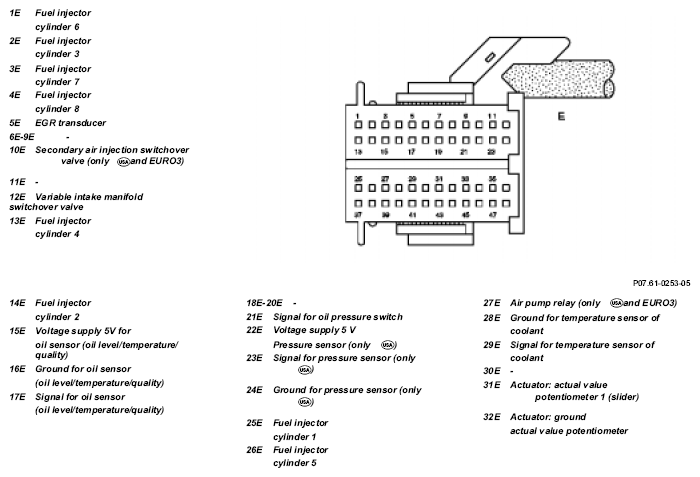

Fig 3: Identifying Connector Assignment For ME-SFI Gasoline Injection And Ignition System (3 Of 4)
G04605978Courtesy of MERCEDES-BENZ USA

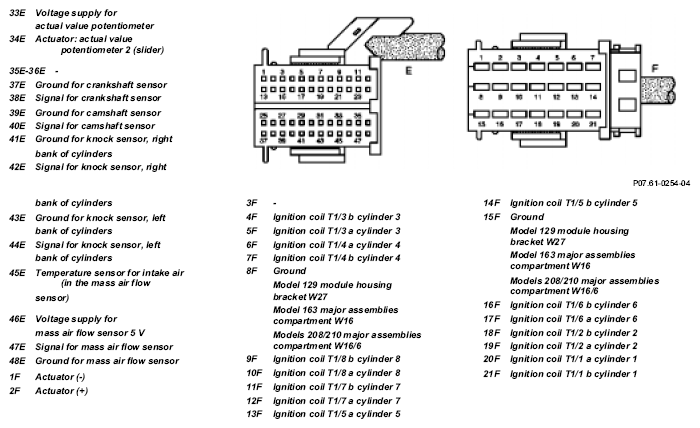

Fig 4: Identifying Connector Assignment For ME-SFI Gasoline Injection And Ignition System (4 Of 4)
G04605979Courtesy of MERCEDES-BENZ USA
