Motor electronics (ME-SFI) fuel injection and ignition system position of components - GF07.61-P-0001-01Q

Model 163

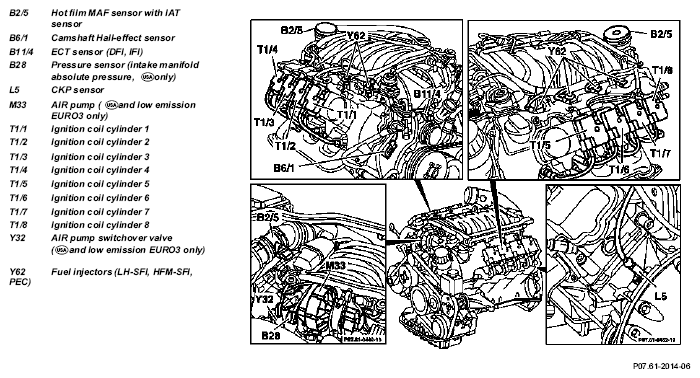

Fig 1: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components(1 Of 2)
G04605900

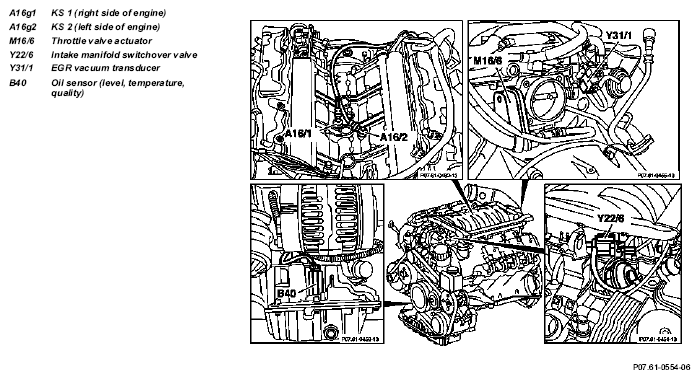

Fig 2: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components (2 Of 2)
G04605901

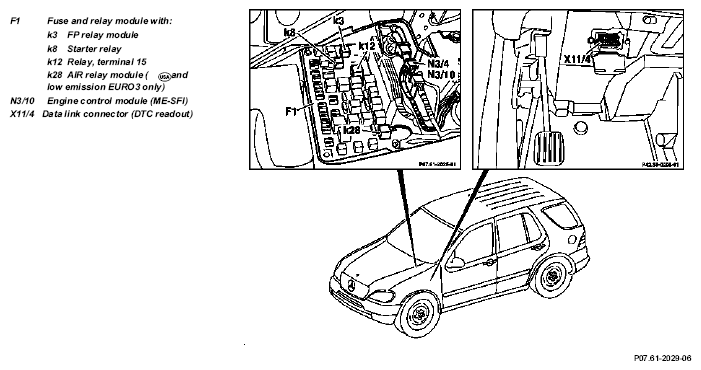

Model 163

Fig 3: Identifying Fuse Relay Pressure Sensor - Model 163
G04605902

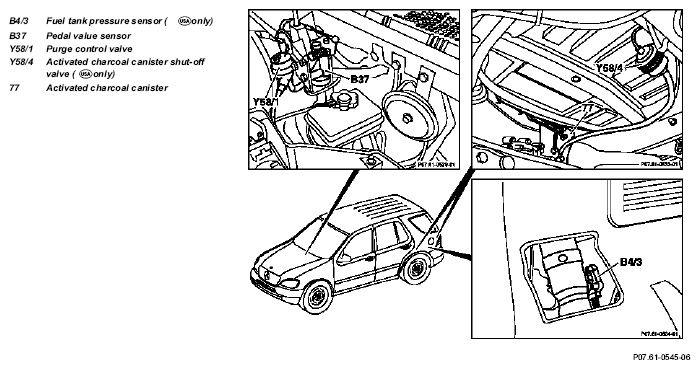

Model 163

Fig 4: Identifying Fuse Tank Pressure Sensor - Model 163
G04605903

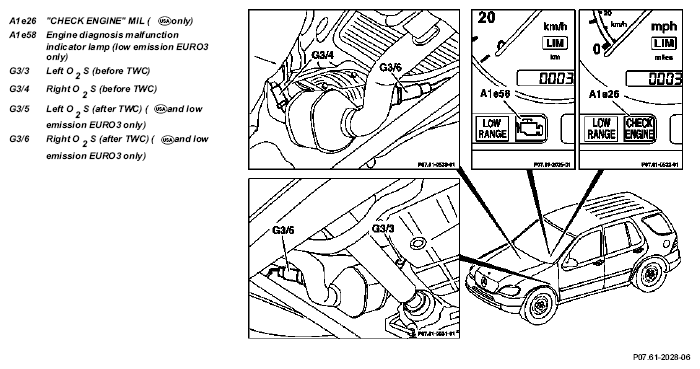

Model 163

Fig 5: Identifying Engine Diagnosis Malfunction Indicator Lamp - Model 163
G04605904
