Intake manifold connection diagram - AR09.20-P-1310-01AU

Shown on engine 113

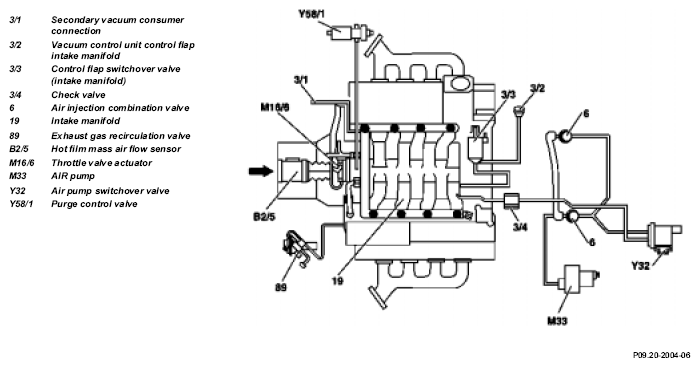

Fig 1: Intake Manifold Connection Diagram - Shown On Engine 113

G04606171
