Intake manifold connection diagram - AR09.20-P-1310-01AC

Shown on engine 113 with USA version code 494a

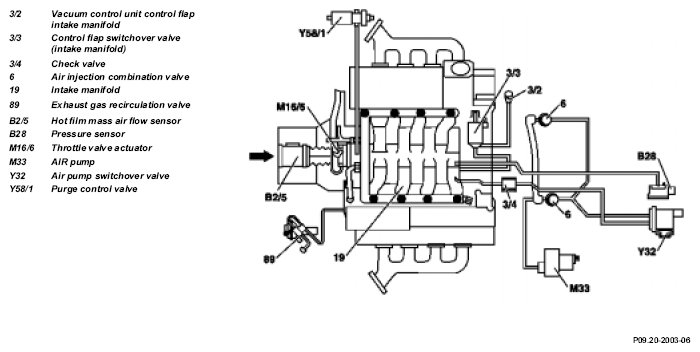

Fig 1: Intake Manifold Connection Diagram - Shown On Engine 113 With USA Version Code 494a

G04606170
