Intake manifold connection diagram - AR09.20-P-1310-01AA

Connection diagram of intake manifold engine 112 with USA version code 494a

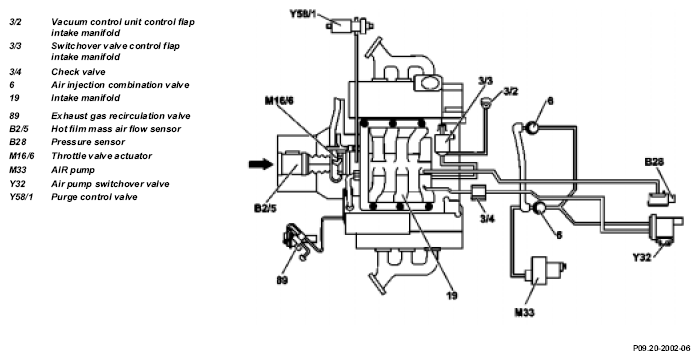

Fig 1: Intake Manifold Connection Diagram - Connection Diagram Of Intake Manifold - Engine 112 With USA Version Code 494a
