Drain/fill in coolant - AR20.00-P-1142HA

ENGINE 230.467 112 in MODEL 129, 163, 202, 208, 210, 211.061 /065 /261 /265 /080 /280 /082 /282, 220, 230.467

ENGINE 113 in MODEL 129, 163, 202, 208, 210, 211.070 /270 /083 /283, 215, 220

ENGINE 113.962 in MODEL 463.206 /240 /241 /247 /248 /249 /254

ENGINE 112.945 in MODEL 463.209 /232 /233 /244 /245 /250

ENGINE 137 in MODEL 215, 220

ENGINE 113.982 in MODEL 463.241 /243 /246

Illustrated on model 202

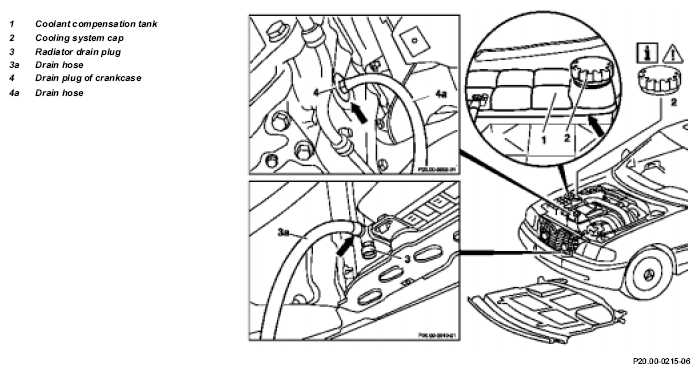

Fig 1: Identifying Cooling System Components - Model 202
G04606330Courtesy of MERCEDES-BENZ USA

Shown on model 215 with engine 137

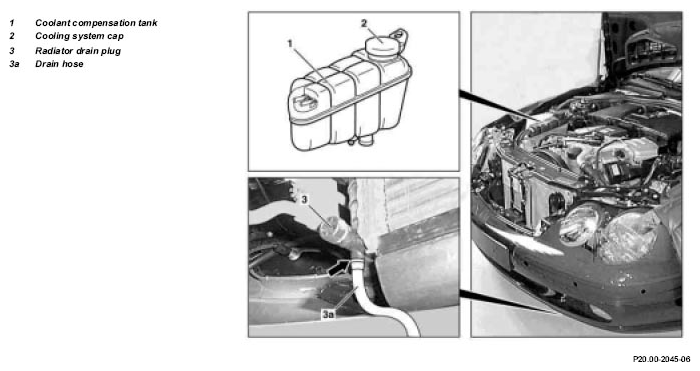

Fig 2: Identifying Cooling Compensation Tank Components - Shown On Model 215 With Engine 137
G04606331Courtesy of MERCEDES-BENZ USA
Modification notes

12.10.04 Fill coolant using vacuum method added Step 16
  Drain
DANGER Risk of death  caused by vehicle slipping or toppling off the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  to skin and eyes caused by scalding from contact with hot coolant spray.
Risk of poisoning  caused by swallowing coolant.		 Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.		 AS20.00-Z-0001-01A
NOTES Notes on coolant   AH20.00-N-2080-01A
1 Open engine hood
2 Disconnect ground cable of battery Only when draining coolant at crankcase, right.
IMPORTANT Do not connect quiescent current retention unit.
Model 129, 163, 202, 208, 210 AR54.10-P-0003A
Model 211.0 AR54.10-P-0003T
Model 211.2 AR54.10-P-0003TA
Model 215, 220 AR54.10-P-0003I
Model 230 AR54.10-P-0003R
Model 463 without special protection AR54.10-P-0003G
Model 463.241 with special protection, code 979 AR54.10-P-0003PV
Model 463.248 with special protection, code 979 AR54.10-P-0003PM
3 Open cooling system cap (2) at coolant expansion reservoir (1) IMPORTANT Observe the different versions.
Cooling system cap (2) with detent:
Rotate cooling system cap with detent (2) carefully to first predetent, release pressure, then unscrew cooling system cap with detent (2).
1-stage and 2-stage cooling system cap (2): turn cooling system cap (2) 1/2 revolution counterclockwise, release pressure, then remove cooling system cap (2).
4 Raise vehicle
5.1 Remove lower engine compartment paneling Model 129, 202, 208, 210 AR61.20-P-1105AB
Model 163 with engine 112
Model 163 with engine 113 AR61.20-P-1105GH
Model 211 AR61.20-P-1105T
Model 215, 220 AR61.20-P-1105M
Model 230 AR61.20-P-1105R
5.2 Remove under-ride guard Model 463
6 Remove air deflector shield Model 163 with engine 113.942
  Drain coolant from radiator
7 Push siphon hose (3a) onto radiator drain plug (3) Model 129, 202, 208, 210, 211, 215, 220, 230, 463
8 Open radiator drain plug (3) and drain coolant Model 129, 202, 208, 210, 211, 215, 220, 230, 463
IMPORTANT Catch coolant in a suitable vessel.
9 Tighten radiator drain plug (3) and detach drain hose (3a) from radiator drain plug (3) Model 129, 202, 208, 210, 211, 215, 220, 230, 463
10 Detach lower coolant hose from radiator or coolant pump and drain coolant Model 163
IMPORTANT Catch coolant in a suitable vessel.
11 Attach lower coolant hose to radiator or coolant pump Model 163
IMPORTANTInstallation:  Replace hose clamp.
TORQUE SPECIFICATION		 *BA20.20-P-1004-01A
  Drain coolant at crankcase
12 Push siphon hose (4a) onto crankcase drain plug (4) Model 129, 202, 208, 210, 211, 215, 220, 230, 463
13 Open crankcase drain plug (4) and drain coolant Model 129, 202, 208, 210, 211, 215, 220, 230, 463
IMPORTANT Catch coolant in a suitable vessel.
14 Tighten crankcase drain plug (4) and detach drain hose (4a) from crankcase drain plug (4) Model 129, 202, 208, 210, 211, 215, 220, 230, 463
TORQUE SPECIFICATION *BA01.40-P-1003-01C
TORQUE SPECIFICATION *BA20.00-P-1001-02B
15 Lower vehicle
  Filling
16 Pour in coolant and bleed cooling system IMPORTANT Reuse clean coolant. AR20.00-P-1142-04A
    SPECIAL TOOL Figure
    SPECIAL TOOL Figure
REFER TO CAPACITIES & SPECIFICATIONS Coolant specifications Sheet 310.1 BB00.40-P-0310-01A
REFER TO CAPACITIES & SPECIFICATIONS Anticorrosion/antifreeze agents (Sheet 325.0) Sheet 325.0 BB00.40-P-0325-00A
    FLUID SPECIFICATION Engine 112, 113 *BF20.00-P-1001-02K
    FLUID SPECIFICATION Engine 137 *BF20.00-P-1001-02M
NOTES Notes on coolant level Engine 112, 113, 137 AH20.00-P-1142-01V
IMPORTANT Notes on coolant level Model 163 with engine 112, 113 AH20.00-P-1142-01GH
17 Inspect cooling system for leaks   AR20.00-P-1010HA
18 Fit air deflector Model 163 with engine 113.942
19.1 Install under-ride guard Model 463
19.2 Install lower engine compartment paneling Model 129, 202, 208, 210 AR61.20-P-1105AB
Model 163 with engine 112
Model 163 with engine 113 AR61.20-P-1105GH
Model 211 AR61.20-P-1105T
Model 215, 220 AR61.20-P-1105M
Model 230 AR61.20-P-1105R
20 Lower vehicle
21 Connect ground cable to battery Only when coolant has been drained at crankcase on the right.
Model 129, 163, 202, 208, 210 AR54.10-P-0003A
Model 211.0 AR54.10-P-0003T
Model 211.2 AR54.10-P-0003TA
Model 215, 220 AR54.10-P-0003I
Model 230 AR54.10-P-0003R
Model 463 without special protection AR54.10-P-0003G
Model 463.241 with special protection, code 979 AR54.10-P-0003PM
Model 463.248 with special protection, code 979 AR54.10-P-0003PV
22 Perform basic programming Only if ground line for battery has been disconnected.
Model 129 AR00.19-P-0200A
Model 163 AR00.19-P-0200GH
Model 202, 208 AR00.19-P-0200C
Model 210 AR00.19-P-0200D
Model 211 AR00.19-P-0200T
Model 215, 220 AR00.19-P-0200M
Model 230 AR00.19-P-0200R
Model 463 except 463.206 /209 /232 /233 /240 /241 AR00.19-P-0200P
Model 463.206/ 209/ 232/ 233/ 240/ 241
23 Read out and erase the fault memory using STAR DIAGNOSIS. Only if the ground line of the battery has been disconnected.
24 Close engine hood
Crankcase, timing case cover, end cover

Number Designation Engine 113.940/941/ 942/943/944/ 945/946/948/ 960/961/962/ 963/964/965/ 966/967/968/ 969/971/980/ 981/982/984/ 986/992/995 Engine 137
BA01.40-P-1003-01C Outlet connection for crankcase Nm 12 12
Engine cooling, general

Number Designation Engine 112, 113.940/941/ 942/943/944/ 945/946/948/ 960/961/963/ 964/965/966/ 967/968/971/ 980/981/984/ 986/987/988/ 990/991/992/ 995
BA20.00-P-1001-02B Coolant drain plug to crankcase Nm 12
Radiator, coolant hoses

Number Designation Engine 112.942/970, 113.942/965/981
BA20.20-P-1004-01A Hose clamp Nm 3
Cooling system

Number Designation Engine 112.910/920 in Model 202, 112.940 in Model 208 Engine 112.911/921/941 in model 210 Engine 112.922/944/972 in model 220
BF20.00-P-1001-02K Cooling system Total filling capacity Liters ≈9.5 ≈10.0 ≈10.5
Capacity of anticorrosion/ antifreeze agent down to -37°C Liters ≈4.75 ≈5.0 ≈5.0
Filling capacity of anticorrosion/ antifreeze down to -45°C Liters ≈5.25 ≈5.5 ≈5.5
Specifications for Operating Fluids Sheet BB00.40-P-0310-01A BB00.40-P-0310-01A BB00.40-P-0310-01A
Sheet BB00.40-P-0325-00A BB00.40-P-0325-00A BB00.40-P-0325-00A
Cooling system

Number Designation Engine 112.923/943 in model 129 Engine 112.945 in Model 463.209/232/233/244 /245/250 Engine 112.942 in Model 163, 113.940/980 in Model 210, 113.943/984 in Model 208, 113.944 in Model 202
BF20.00-P-1001-02K Cooling system Total filling capacity Liters ≈11.75 ≈11.5 ≈11.0
Capacity of anticorrosion/antifreeze agent down to -37°C Liters ≈6.0 ≈5.8 ≈5.5
Filling capacity of anticorrosion/antifreeze down to -45°C Liters ≈6.5 ≈6.4 ≈6.0
Specifications for Operating Fluids Sheet BB00.40-P-0310-01A BB00.40-P-0310-01A BB00.40-P-0310-01A
Sheet BB00.40-P-0325-00A BB00.40-P-0325-00A BB00.40-P-0325-00A
Cooling system

Number Designation Engine 112.913/917/ 949/954 in Model 211 Engine 113.967/969 in model 211
BF20.00-P-1001-02K Cooling system Total filling capacity Liters ≈9.5 ≈10.75
Capacity of anticorrosion/ antifreeze agent down to -37°C Liters ≈4.75 ≈5.25
Filling capacity of anticorrosion/ antifreeze down to -45°C Liters ≈5.25 ≈6.0
Specifications for Operating Fluids Sheet BB00.40-P-0310-01A BB00.40-P-0310-01A
Sheet BB00.40-P-0325-00A BB00.40-P-0325-00A
Cooling system

Number Designation Engine 113.941/960 in model 220 Engine 113.941/9601 in model 129 Engine 113.962 in Model 463.206/ 240/241 /247/248 249/254
BF20.00-P-1001-02K Cooling system Total filling capacity Liters ≈11.5 ≈12.75 ≈12
Capacity of anticorrosion/ antifreeze agent down to -37°C Liters ≈5.75 ≈6.25 ≈6
Filling capacity of anticorrosion/ antifreeze down to -45°C Liters ≈6.25 ≈7.0 ≈6.6
Specifications for Operating Fluids Sheet BB00.40-P-0310-01A BB00.40-P-0310-01A BB00.40-P-0310-01A
Sheet BB00.40-P-0325-00A BB00.40-P-0325-00A BB00.40-P-0325-00A
Cooling system

Number Designation Engine 113.991 in model 215 Engine 113.960/ 986 in model 215 Engine 113.960 / model 230.467
BF20.00-P-1001-02K Cooling system Total filling capacity Liters ≈14.5 ≈11.5 ≈10.8
Capacity of anticorrosion/ antifreeze agent down to -37°C Liters ≈7.3 ≈5.75 ≈5.4
Filling capacity of anticorrosion/ antifreeze down to -45°C Liters ≈8 ≈6.25 ≈6
Specifications for Operating Fluids Sheet BB00.40-P-0310-01A BB00.40-P-0310-01A BB00.40-P-0310-01A
Sheet BB00.40-P-0325-00A BB00.40-P-0325-00A BB00.40-P-0310-01A
Cooling system

Number Designation Engine 112.970 113.965 in Model 163 Engine 113.942/981 in model 163 Engine 113.982 in model 463.241/243/246
BF20.00-P-1001-02K Cooling system Total filling capacity Liters ≈12.0 ≈11.5 ≈11.9
Capacity of anticorrosion/ antifreeze agent down to -37°C Liters ≈6.0 ≈5.75 ≈5.95
Filling capacity of anticorrosion/ antifreeze down to -45°C Liters ≈6.75 ≈6.25 ≈6.55
Specifications for Operating Fluids Sheet BB00.40-P-0310-01A BB00.40-P-0310-01A BB00.40-P-0310-01A
Sheet BB00.40-P-0325-00A BB00.40-P-0325-00A BB00.40-P-0325-00A
Cooling system

Number Designation Engine 113.986/991 in Model 220 Engine 113.948/966 in model 220 Engine 112.975 in model 220
BF20.00-P-1001-02K Cooling system Total filling capacity Liters ≈13.5 ≈11.6 ≈10.4
Capacity of anticorrosion/ antifreeze agent down to -37°C Liters ≈6.8 ≈5.8 ≈5, 2
Filling capacity of anticorrosion/ antifreeze down to -45°C Liters ≈7.4 6.4 ≈5.7
Specifications for Operating Fluids Sheet BB00.40-P-0310-01A BB00.40-P-0310-01A BB00.40-P-0310-01A
Sheet BB00.40-P-0325-00A BB00.40-P-0325-00A BB00.40-P-0310-01A
Cooling system

Number Designation Engine 137.970
BF20.00-P-1001-02M Cooling system Total filling capacity Liters ≈12
Filling capacity of anticorrosion/ antifreeze down to -37°C Liters ≈6
Filling capacity of anticorrosion/ antifreeze down to -45°C Liters ≈6, 6
Specifications for Operating Fluids Sheet BB00.40-P-0310-01A
Sheet BB00.40-P-0325-00A
Fig 3: Identifying Test Cap (210 589 00 91 00)
G04606332Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Vacuum-Type Cooling System Filler (285 589 00 21 00)
G04606333Courtesy of MERCEDES-BENZ USA
