Remove/install switch group on center console - AR72.29-P-0001GI

MODEL 163.113 /154 /174 #A as of 289565, 163.113 #X as of 754620, 163.128/157/175

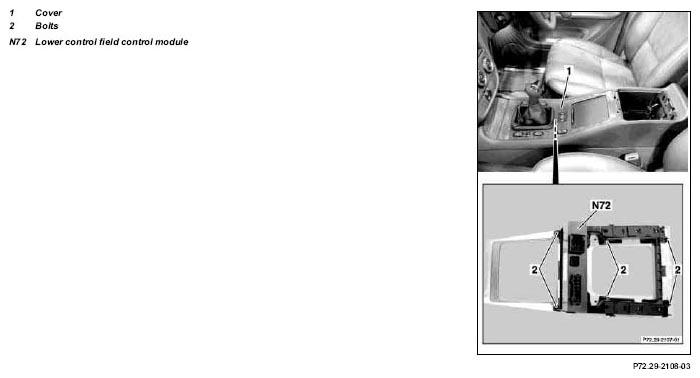

Fig 1: Identifying Cover, Lower Control Field Control Module And Bolts
G04608367
REMOVINGINSTALLING Remove/install
1 Remove cover (1) on gearshift lever   AR68.20-P-2310GI
2 Remove screws (2) at the lower side of the lower control panel control module (N72)
3 Detach lower control panel control module (N72) from the cover IMPORTANT The lower control panel control module can only be replaced as a unit.
4 Install in the reverse order
