Remove/install front door - AR72.10-P-0500GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175
| Remove/Install | |||
|---|---|---|---|
| Risk of injury to fingers being jammed or pinched when Remove/install or aligning hoods, doors, trunk lid and sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |

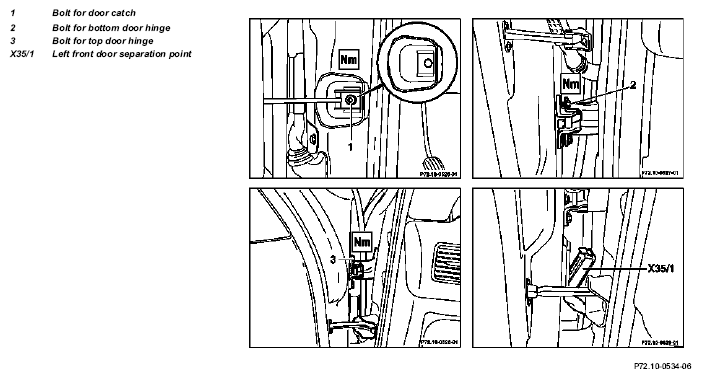

| 1 | Disconnect left front door separation point (X35/1) | ||
| 2 | Unscrew door catch bolt (1) from A-pillar | *BA72.10-P-1001-01D | |
| 3 | Remove dust guard on A-pillar | ||
| 4 | Unscrew bolts on bottom door hinge (2) | ||
| *BA72.10-P-1005-01D | |||
| 5 | Unscrew bolts (3) on top door hinge | ||
| *BA72.10-P-1005-01D | |||
| 6 | Remove front door (4) from door hinges with 2nd person | Remove door hinge from A-pillar. |
|
| *BA72.10-P-1006-01D | |||
| 7 | Install in the reverse order | ||
| 8 | Check gap around front door (4) | AR60.00-P-0700-01GH *BE60.00-P-1002-01D |
Test and adjustment values, gap dimensions at hoods, doors and covers
| Number | Designation | Model 163 | |||
|---|---|---|---|---|---|
| BE60.00-P-1002-01D | Gap dimension | Front door to A-pillar | Dim. "B" | mm | 5.0 ± (0.5) |
| Front door to fender | Dim. "H" | mm | 5.0 ± (0.5) | ||
| Front door to rear door | Dim. "I" | mm | 5.0 ± (0.5) | ||
| Front door to roof | Dim. "C" | mm | 5.0 ± (0.5) | ||
| Rear door to upper side section | Dim. "D" | mm | 5.0 ± (0.5) | ||
| Rear door to lower side section | Dim. "J" | mm | 5.0 ± (0.5) | ||
| Fender to A-pillar | Dim. "Q" | 5.0 ± (0.5) | |||
| Front door to rear fender | Dim. "P" | - | |||
| Fig., see | AR60.00-P-0700-01GH | ||||
| Number | Designation | Model 163 | |
|---|---|---|---|
| BA72.10-P-1001-01D | Bolt, door catch on A-pillar | Nm | 24 |
| BA72.10-P-1005-01D | Bolt, hinge to door | Nm | 35 |
| BA72.10-P-1006-01D | Bolt, door hinge to A-pillar | Nm | 32 |
