Remove/install door hinge - AR72.20-P-2560GH
MODEL 163
| Remove/Install | |||
|---|---|---|---|
| Risk of injury to fingers being jammed or pinched when Remove/install or aligning hoods, doors, trunk lid and sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |

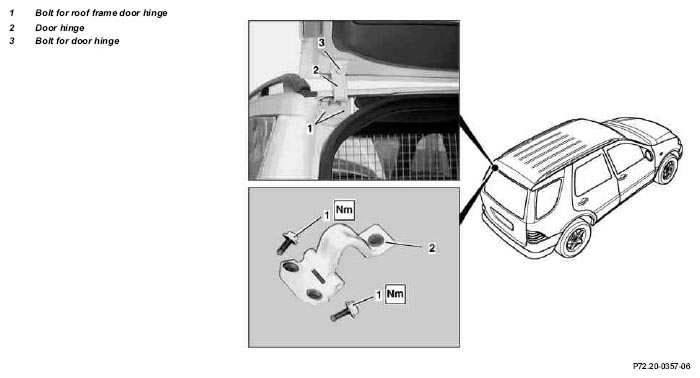

| Mark installation position of door hinge (2) on roof frame and rear door | |||
| 1 | Unscrew bolt for door hinge (3) | *BA72.20-P-1003-02C | |
| 2 | Unscrew bolts for hinge in roof frame (1) | *BA72.20-P-1004-02C | |
| 3 | Remove door hinge (2) | ||
| 4 | Install in the reverse order | AR60.00-P-0700-01GH *BE60.00-P-1003-01D |
Test and adjustment values, gap dimensions at hoods, doors and covers
| Number | Designation | Model 163 | |||
|---|---|---|---|---|---|
| BE60.00-P-1003-01D | Gap dimension | Rear door to roof | Dimension "E" | mm | 9.5 ± (0.5) |
| Rear door to D-pillar | Dimension "F" | mm | 5.0 ± (0.5) | ||
| Rear door to D-pillar | Dimension "G" | mm | 5.0 ± (0.5) | ||
| Rear door to rear fender | Dimension "M" | mm | 5.0 ± (0.5) | ||
| Fig., see | AR60.00-P-0700-01GH | ||||
| Number | Designation | Model 163 | |
|---|---|---|---|
| BA72.20-P-1003-02C | Bolt, door hinge to rear door | Nm | 55 |
| BA72.20-P-1004-02C | Bolt, door hinge to roof frame | Nm | 35 |
