Lamella roof motors position/task - GF77.20-P-4103GH
MODEL 163 with CODE (417a) Lamella roof

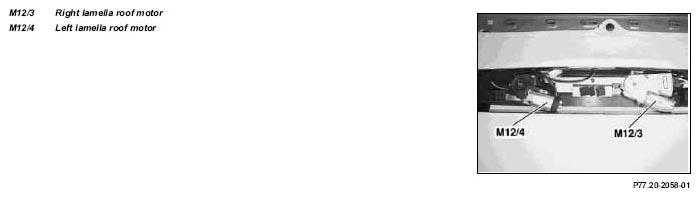

| Lamella roof motors position | The right lamella roof motor (M12/3)/ left lamella roof motor (M12/4) are located in the headlining in the area of the right and left C-pillars. | ||
| Lamella roof motors task | The right lamella roof motors (M12/3) and left lamella roof motor (M12/4) power the lamella roof. The right lamella roof motor (M12/3) acts as the master in this case. The analysis electronics for the entire drive including position detection are integrated in the latter motor. |
