Remove/install door sill molding - AR68.30-P-4100GI

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

Door sill molding in cargo space

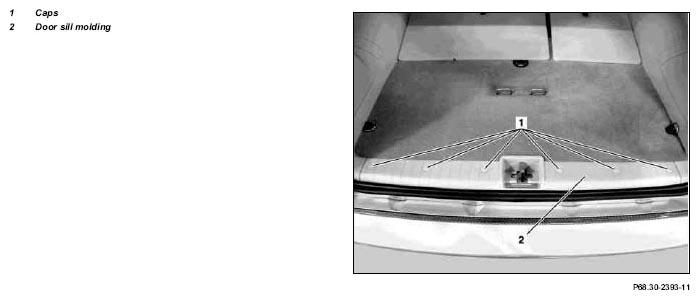

Fig 1: Identifying Caps And Door Sill Molding

	Remove/install
1	Remove cover caps (1)	Do not scratch door sill molding.
2	Remove screws below caps
3	Remove door sill molding (2)	Installation:  Ensure that sealing rubber is positioned correctly.
4.1	Disconnect connector from electronic compass	Only as of 01.09.00 and with code (245), trip computer.
5	Install in the reverse order
