Disassembling and assembling glove compartment lid - AR68.10-P-1220GH
MODEL 163.136 /154 /172 up to 31.8.99

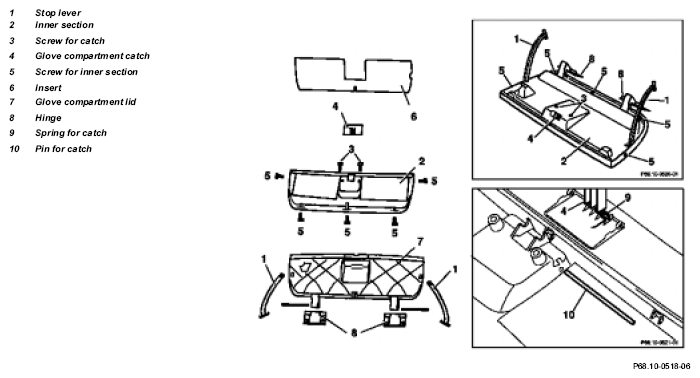

| Disassembly, assembly | |||
|---|---|---|---|
| 1 | Remove glove compartment lid | AR68.10-P-1200GH | |
| 2 | Unclip stop lever (1) from inner section (2) | ||
| 3 | Remove hinges (8) on inner section (2) | ||
| 4 | Unscrew screws (3) from lock (4) | ||
| 5 | Unscrew screws (5) from glove compartment inner section (2) | ||
| 6 | Remove inner section (2) | ||
| 7 | Remove insert (6) from inner section (2) | ||
| 8 | Unhook glove compartment catch (4) and spring (9) | ||
| 9 | Remove glove compartment catch (4) from glove compartment lid (7) | Installation: Observe installation position for spring (9). |
|
| 10 | Install in opposite order |
