Modifying carpet for seat belt attachment point - AN68.20-P-0001-03A

Model 163">

1. Position outer holes of template (1) over center of D-ring Torx fasteners on rear floor cargo compartment.
2. Install T40 Torx bit through each of the template outer holes into the D-ring Torx fasteners to keep template positioned correctly.

   Start at rear template hole, insert Torx bit, stretch out template, then insert Torx bit into front hole.

3. Transfer center hole dimension (2) onto carpet
4. Remove template (1).
5. Remove section (2) of carpet with knife.

   To gain access to the seat belt attachment point.

6. Repeat for opposite side.

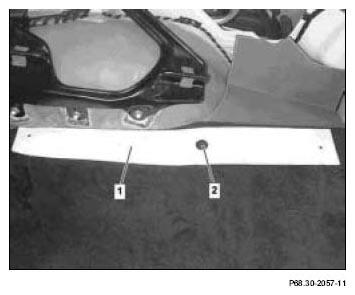

   Fig 1: Identifying Template And Carpet
