Modify paneling on D-pillar - AN68.30-P-0001-01A
MODEL 163.113 /154 #A up to 289564, 163.113 #X up to 754619, 163.154 #X up to 716524, 163.136 /172
When working ensure that the seatbelt is correctly installed, operates properly and that damage to the outer paneling surface is prevented.

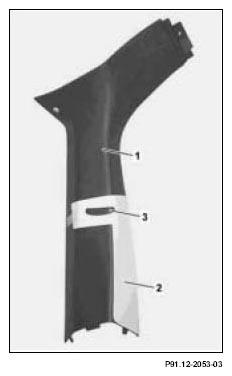

- Glue hole template (2) for seatbelt onto D-pillar paneling (1).
Position edge of template to edge of paneling.
- Mark dimensions of oblong hole (3) on D-pillar paneling (1).
- Remove hole template (2).
- Cut out oblong hole (3) for seatbelt.
- Debug hole edges with P240 sand paper.
- Polish hole edges with P600 sand paper.
To avoid possible chafing of the seatbelt, a uniform smooth surface is required.
- Repeat on opposite side.
